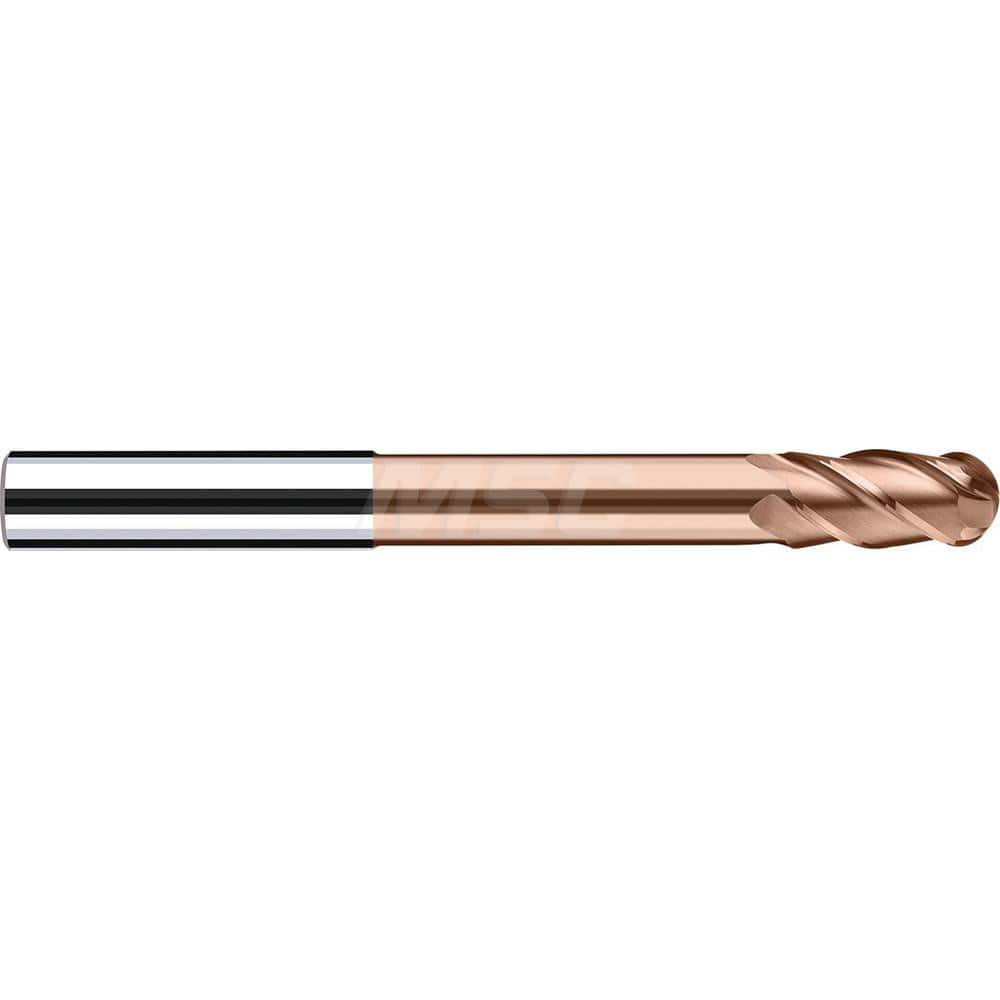

Ball End Mill: 3.1496″ Dia, 0.4724″ LOC, 4 Flute, Solid Carbide 80 mm OAL, 6 mm Shank Dia, 40 ° Helix, Duro-Si Coated, Single End, Series Sphero-X
Item #: 11576907
Brand: Fraisa
Model #: H7494300
Product Specifications
| Mill Diameter (Decimal Inch) | 3.1496 |
| Mill Diameter (mm) | 6.00 |
| Length of Cut (mm) | 12.00 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball End |
| Helix Angle | 40 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 to 0.7000 |
| Variable Helix | Yes |
| Length Type | 6xd |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 5.50 |
| Neck Length (Decimal Inch) | 42.3400 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Material Grade | XA |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Sphero-X |
| Flute Type | Spiral |
| Coating Classification | X-Generation |
| Corner Radius (Decimal Inch) | 1.5000 |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Duro-Si |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4724 |
