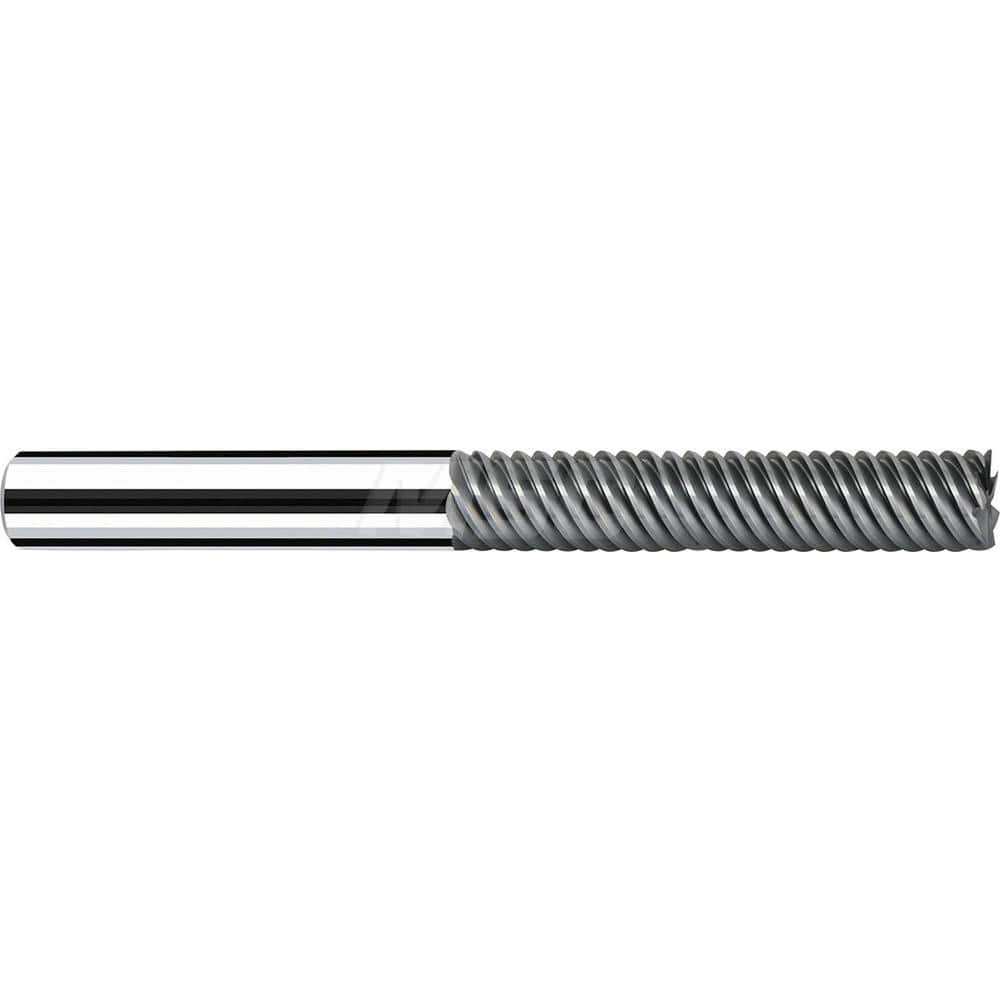

Square End Mill: 0.2362'' Dia, 1.2598'' LOC, 0.2362'' Shank Dia, 2.874'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 65 ™ Variable Helix, RH Cut, RH Flute, Series Multicut XF
Item #: 11576618
Brand: Fraisa
Model #: H8521300
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2362 |
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 32.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | Polychrom |
| Shank Diameter (mm) | 6.00 |
| Helix Angle | 65 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | No |
| Overall Length (mm) | 73.00 |
| Length Of Cut Range (Decimal Inch) | 1.2500 - 1.5000 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Material Grade | HM-XA |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.8740 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Extra Long |
| Series | Multicut XF |
