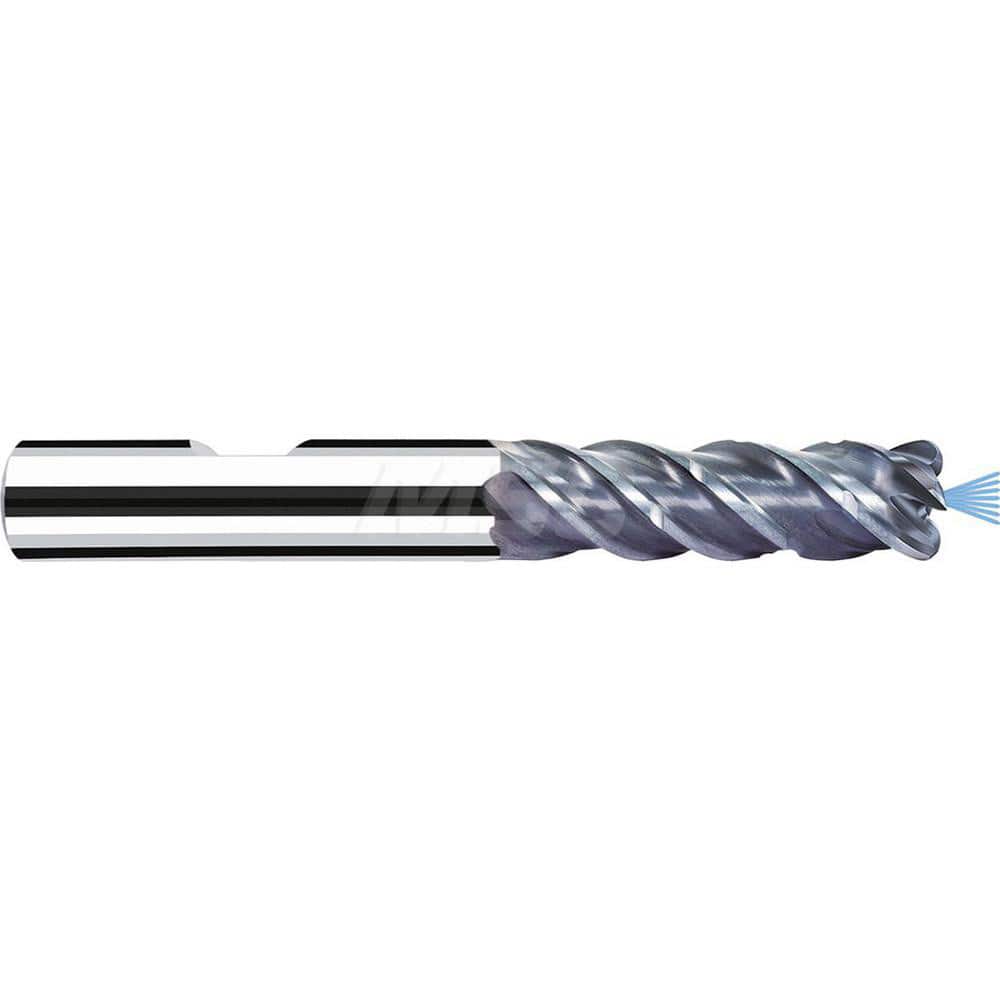

Corner Radius End Mill: 0.1575″ Dia, 0.5118″ LOC, 0.0079″ Radius, 4 Flutes, Solid Carbide 2.4803″ OAL, 0.2362″ Shank Dia, 45 ° Helix, Polychrome Coated, Corner Radius End, Series MB-RNVDS
Item #: 11575743
Brand: Fraisa
Model #: P8217218
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 13.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Medium |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | MG10 |
| Single Or Double End | Single |
| Coating/Finish | Polychrome |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5118 |
