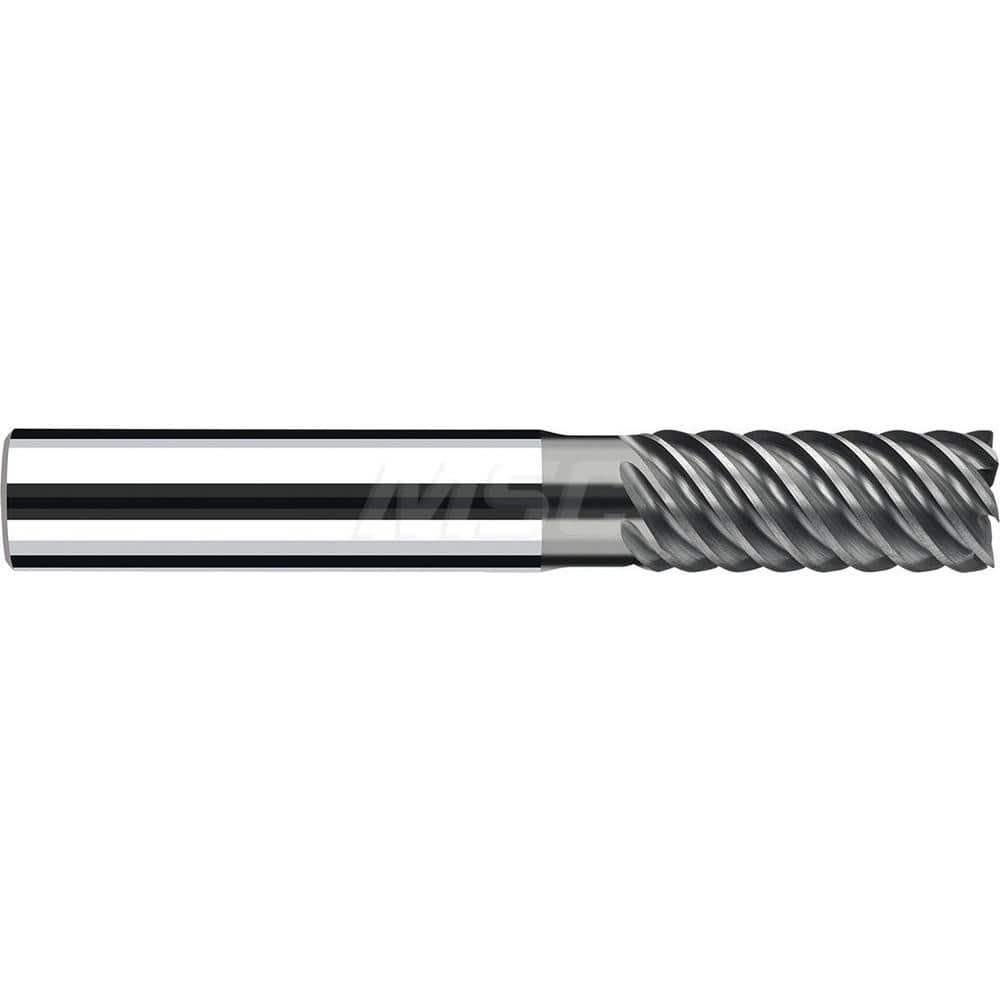

Square End Mill: 0.4724'' Dia, 1.063'' LOC, 0.4724'' Shank Dia, 3.2677'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 55 ™ Variable Helix, RH Cut, RH Flute, Series E-Cut
Item #: 11575594
Brand: Fraisa
Model #: P8301501
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 27.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | Polychrom |
| Shank Diameter (mm) | 12.00 |
| Helix Angle | 55 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | Yes |
| Overall Length (mm) | 83.00 |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.0630 |
| Material Grade | HM-MG10 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 3.2677 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Standard |
| Neck Length (mm) | 33.29 |
| Neck Diameter (mm) | 11.00 |
| Series | E-Cut |
