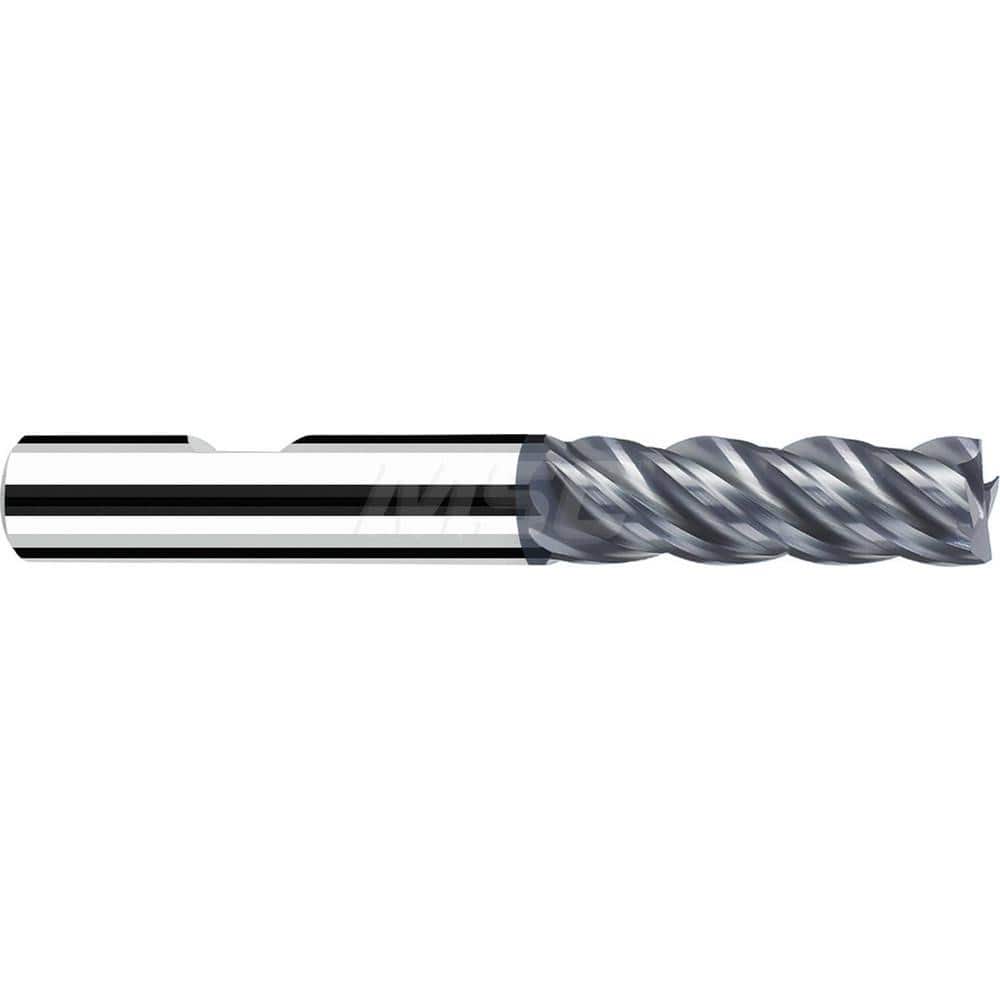

Square End Mill: 0.4724'' Dia, 1.7323'' LOC, 0.4724'' Shank Dia, 3.8189'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 40 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series Favora
Item #: 11575545
Brand: Fraisa
Model #: P45322501
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 44.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Polychrom |
| Shank Diameter (mm) | 12.00 |
| Helix Angle | 40 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | No |
| Overall Length (mm) | 97.00 |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.7323 |
| Material Grade | HM |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 3.8189 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Medium |
| Series | Favora |
