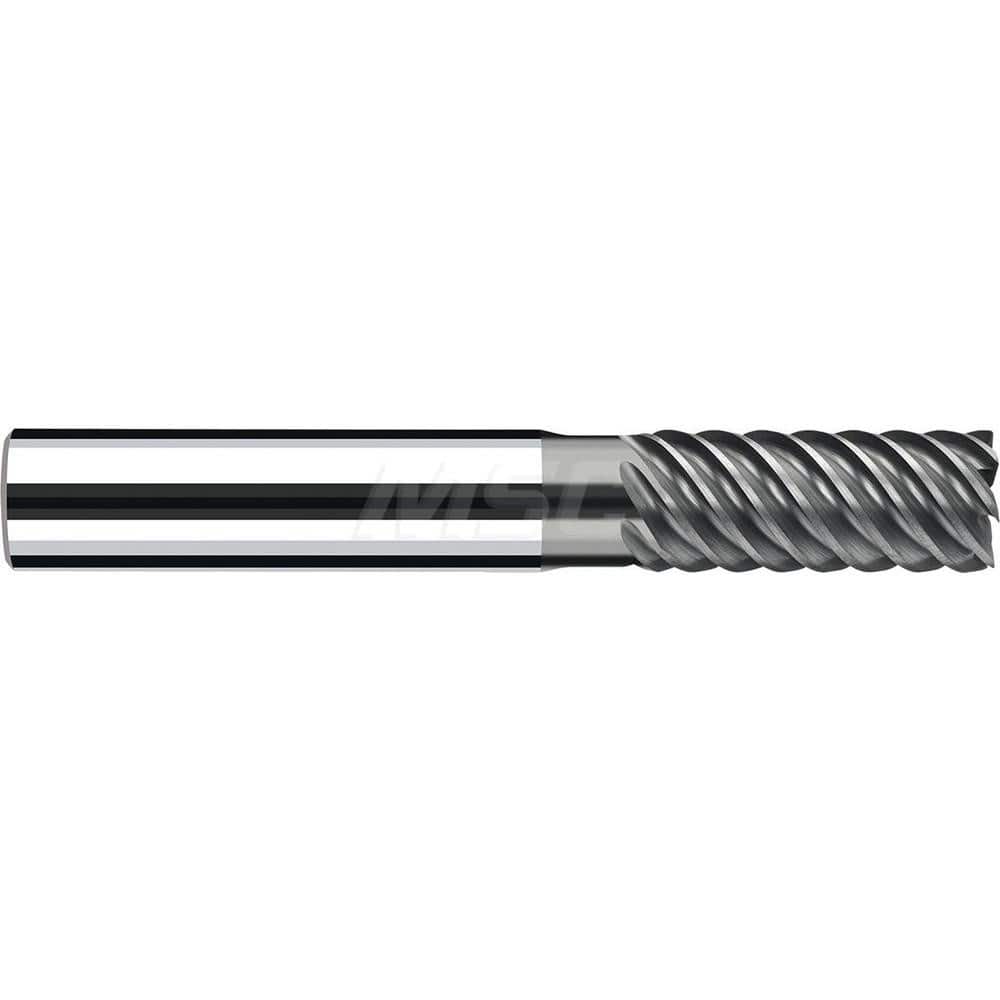

Square End Mill: 1/4'' Dia, 0.0246'' LOC, 1/4'' Shank Dia, 2-1/4'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 55 ™ Variable Helix, RH Cut, RH Flute, Series E-Cut
Item #: 11575305
Brand: Fraisa
Model #: P98301312
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | Polychrom |
| Overall Length (Inch) | 2-1/4 |
| Helix Angle | 55 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.1000 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material Grade | HM-MG10 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.2500 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Standard |
| Neck Length (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.2250 |
| Neck Diameter (mm) | 0.23 |
| Series | E-Cut |
