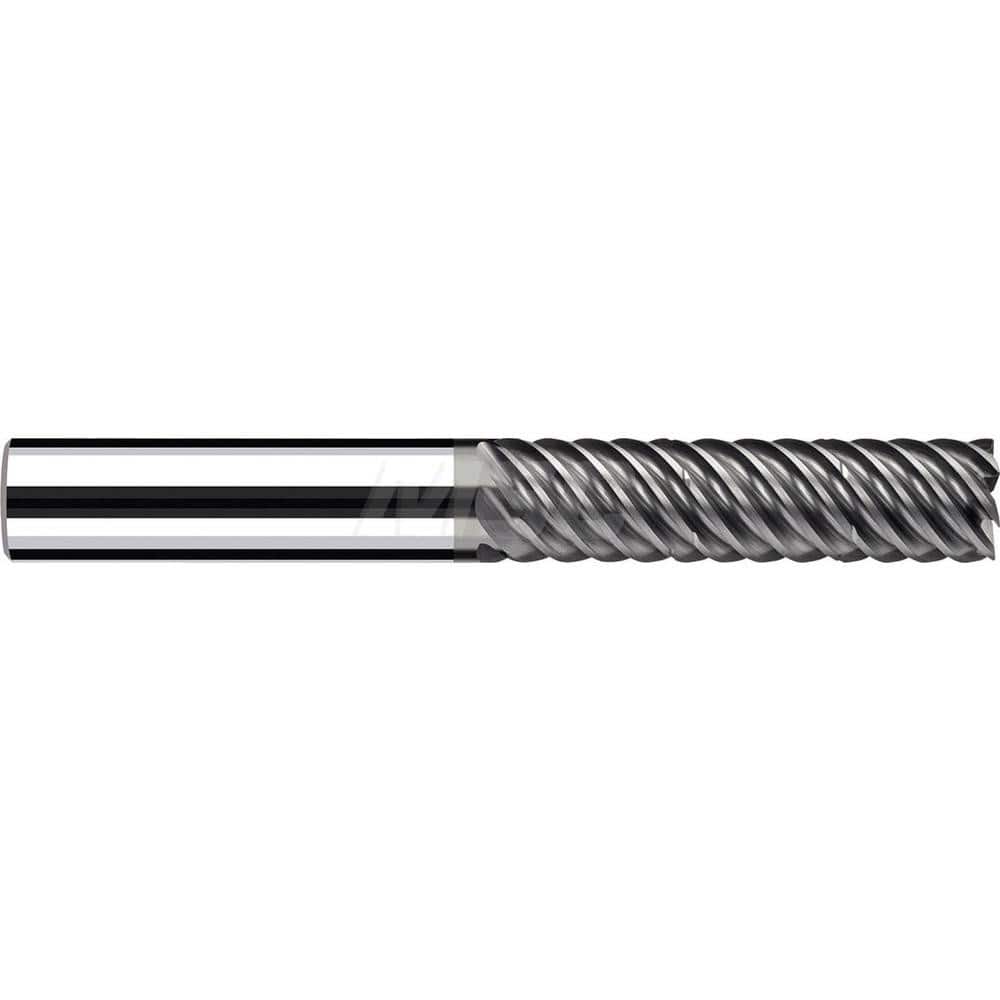

Square End Mill: 3/16'' Dia, 9/16'' LOC, 1/4'' Shank Dia, 2-1/4'' OAL, 5 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 55 ™ Variable Helix, RH Cut, RH Flute, Series E-Cut
Item #: 11575156
Brand: Fraisa
Model #: P98311252
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 9/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | Polychrom |
| Overall Length (Inch) | 2-1/4 |
| Helix Angle | 55 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Length of Cut (Decimal Inch) | 0.5625 |
| Material Grade | HM-MG10 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.2500 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Long |
| Series | E-Cut |
