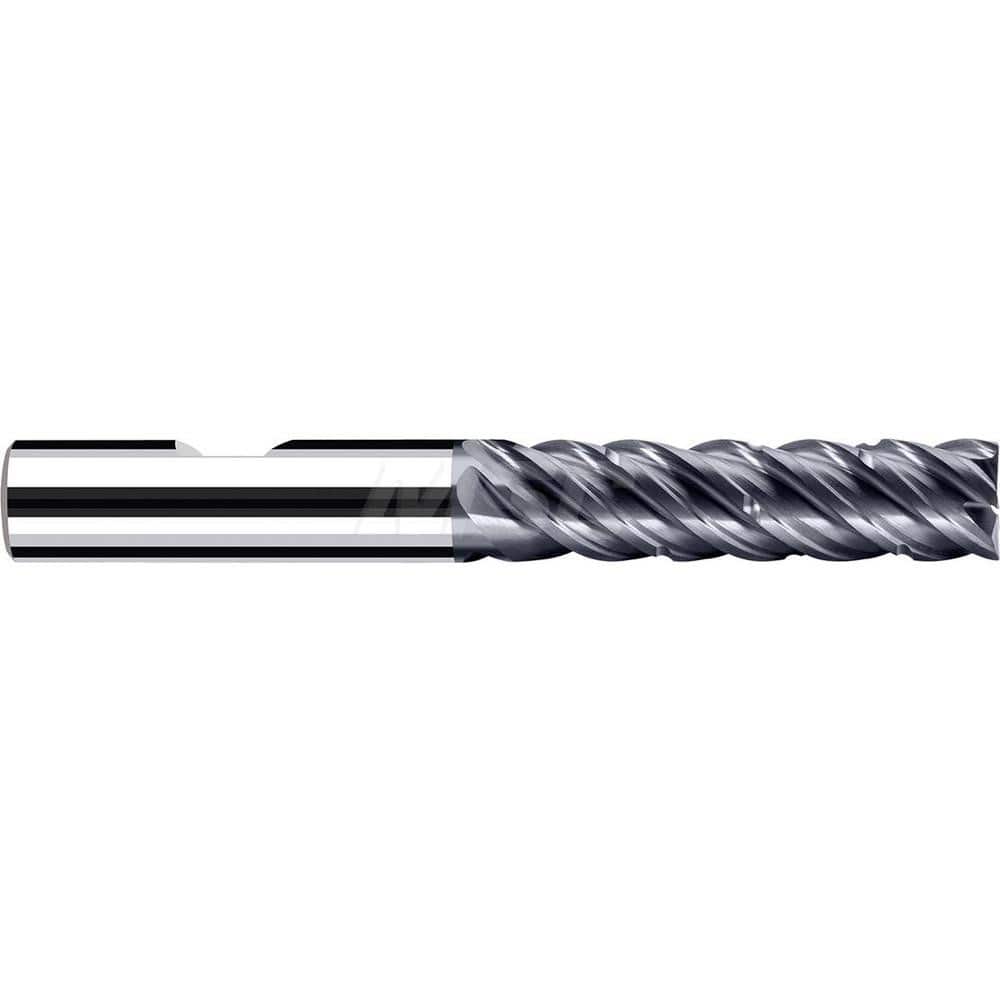

Corner Radius End Mill: 0.4724″ Dia, 1.7323″ LOC, 0.0079″ Radius, 5 Flutes, Solid Carbide 3.8189″ OAL, 0.4724″ Shank Dia, 45 ° Helix, Polychrome Coated, Corner Radius End, Centercutting, Series E-Cut
Item #: 11574647
Brand: Fraisa
Model #: P8315501
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 44.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Type | Medium |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 97.00 |
| Overall Length (Decimal Inch) | 3.8189 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | MG10 |
| Single Or Double End | Single |
| Coating/Finish | Polychrome |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7323 |
