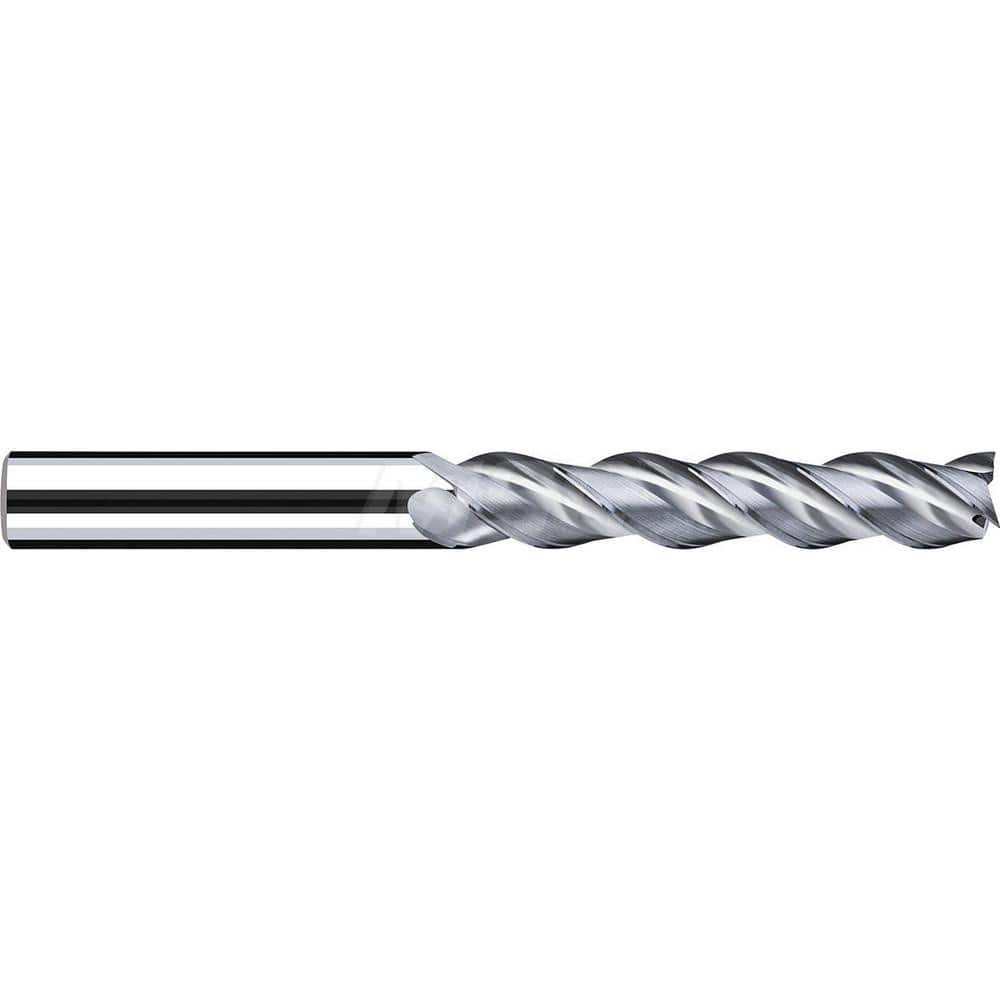

Corner Radius End Mill: 0.4724″ Dia, 2.4803″ LOC, 0.0984″ Radius, 3 Flutes, Solid Carbide 4.6063″ OAL, 0.4724″ Shank Dia, 40 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series AX
Item #: 11574456
Brand: Fraisa
Model #: 15512506
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Length of Cut (mm) | 63.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | 5.2xd Extra Long |
| Flute Type | Spiral |
| Helix Angle | 40 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | MG10 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.4803 |
