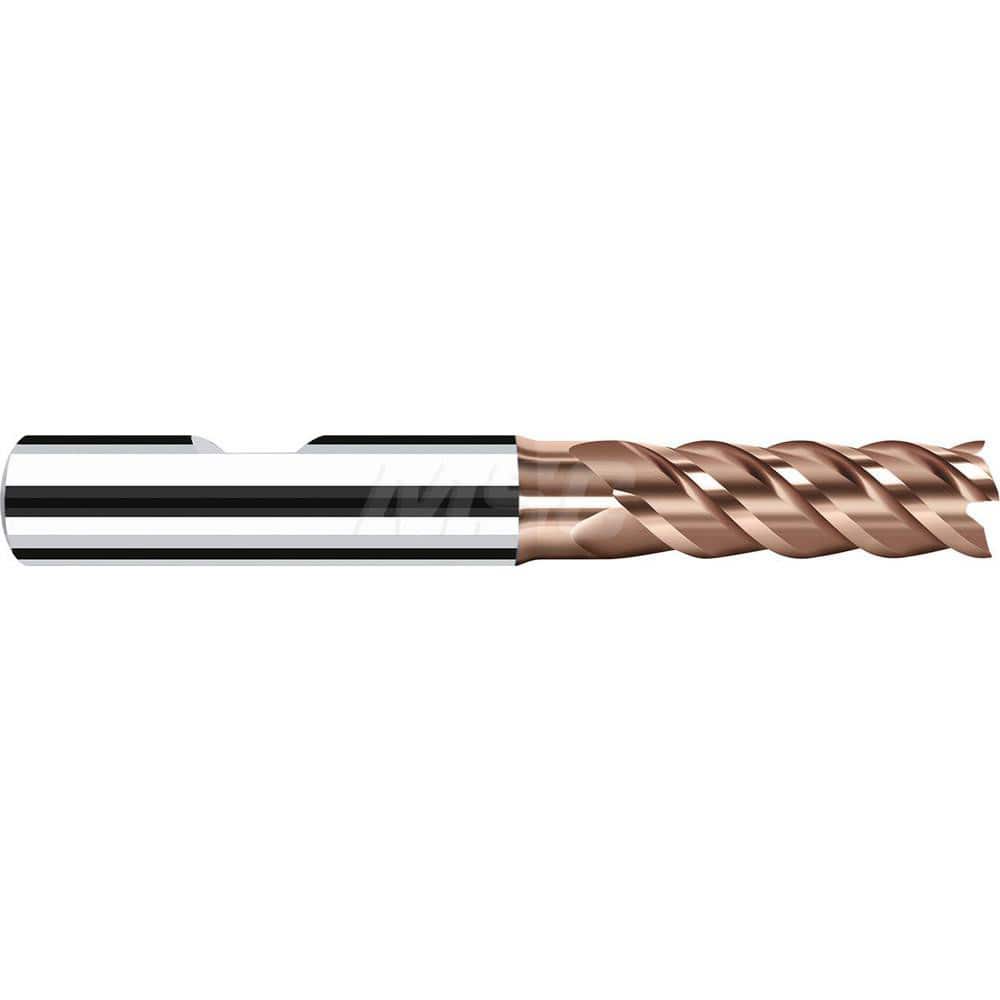

Square End Mill: 0.1969'' Dia, 0.6299'' LOC, 0.2362'' Shank Dia, 2.4803'' OAL, 3 Flutes, Solid Carbide Single End, Duro-Si Finish, Spiral Flute, 45 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series HX-NVS
Item #: 11573821
Brand: Fraisa
Model #: H8614260
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1969 |
| Mill Diameter (mm) | 5.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 16.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Duro-Si |
| Shank Diameter (mm) | 6.00 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | Yes |
| Overall Length (mm) | 63.00 |
| Length Of Cut Range (Decimal Inch) | 0.6000 - 0.7000 |
| Length of Cut (Decimal Inch) | 0.6299 |
| Material Grade | HM-XA |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.4803 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Medium |
| Neck Length (mm) | 24.00 |
| Neck Diameter (mm) | 4.60 |
| Series | HX-NVS |
