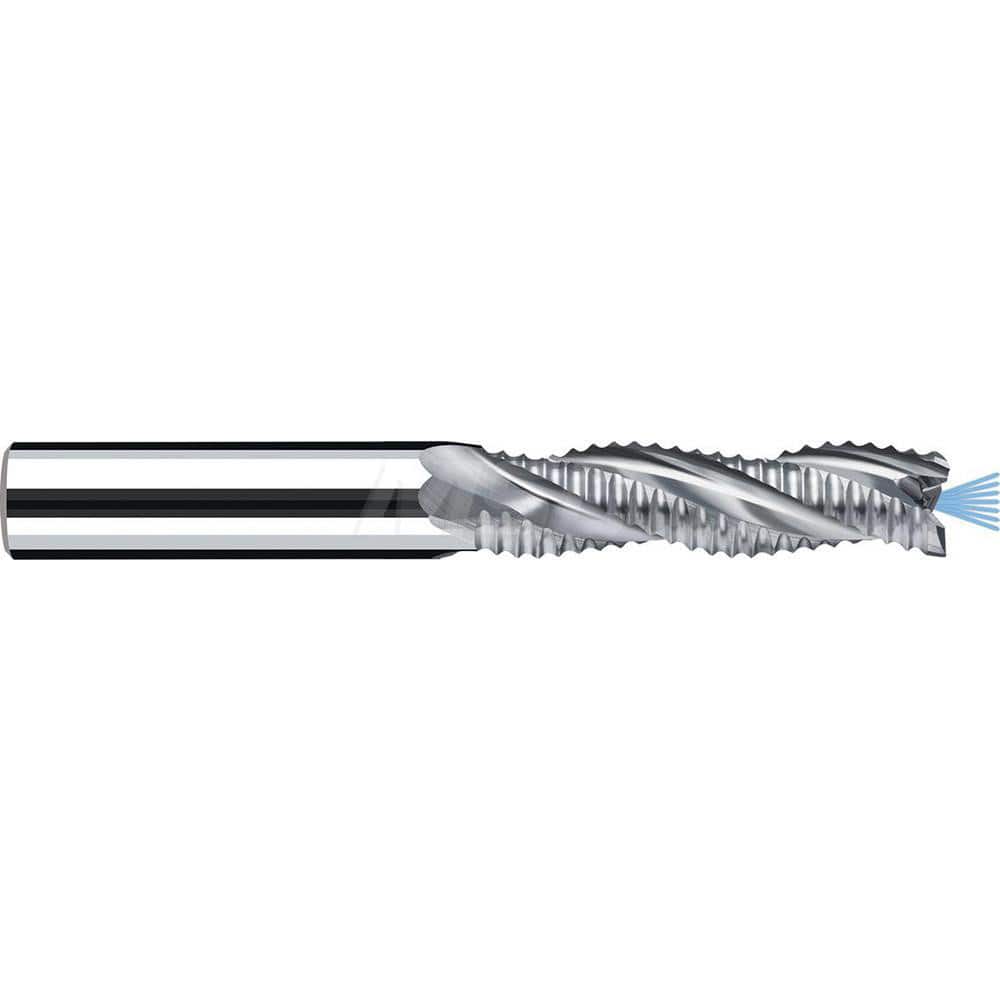

Roughing End Mills; Mill Diameter (mm): 6.00; Mill Diameter (Decimal Inch): 0.2362; Number of Flutes: 3; Pitch: Normal; Length of Cut (mm): 19.0000; Length of Cut (Decimal Inch): 0.7480; Shank Diameter (Inch): 0.2362; Shank Diameter (mm): 0.2362; 6.0000;
Item #: 11573698
Brand: Fraisa
Model #: 15506300
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 3 |
| Pitch | Normal |
| Length of Cut (mm) | 19.0000 |
| Length of Cut (Decimal Inch) | 0.7480 |
| Shank Diameter (Inch) | 0.2362 |
| Shank Diameter (mm) | 0.2362; 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 63.0000 |
| Centercutting | No |
| Helix Angle | 30.00 |
| Corner Radius (mm) | 0.10 |
| Material Grade | MG10 |
| Single or Double End | Single; Square |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Medium |
| Flute Type | Spiral |
| Series/List | AX-FPS |
