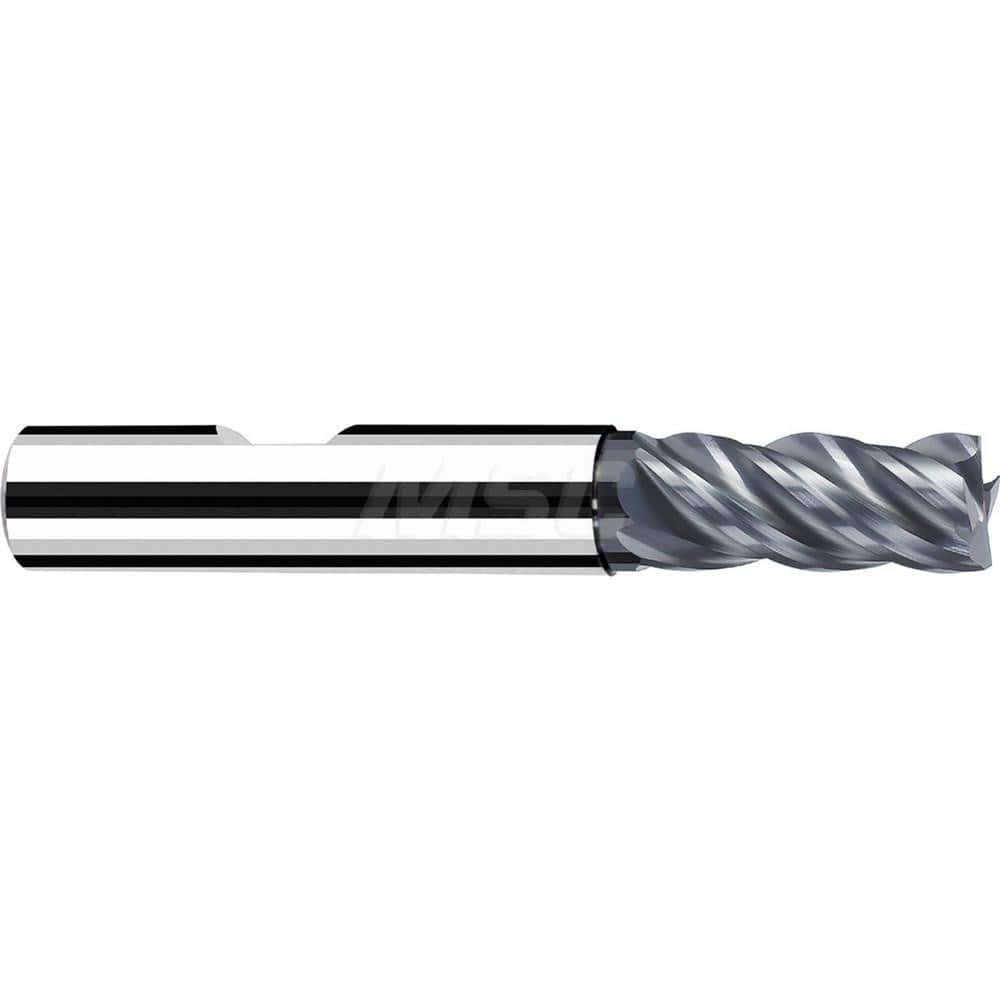

Square End Mill: 0.3937'' Dia, 0.8661'' LOC, 0.3937'' Shank Dia, 2.8346'' OAL, 3 Flutes, Solid Carbide Single End, Polychrom Finish, Spiral Flute, 40 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series Favora
Item #: 11573284
Brand: Fraisa
Model #: P45217450
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 22.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | Polychrom |
| Shank Diameter (mm) | 10.00 |
| Helix Angle | 40 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Extended Reach | Yes |
| Overall Length (mm) | 72.00 |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Length of Cut (Decimal Inch) | 0.8661 |
| Material Grade | HM |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.8346 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Neck Length (mm) | 30.20 |
| Neck Diameter (mm) | 9.20 |
| Series | Favora |
