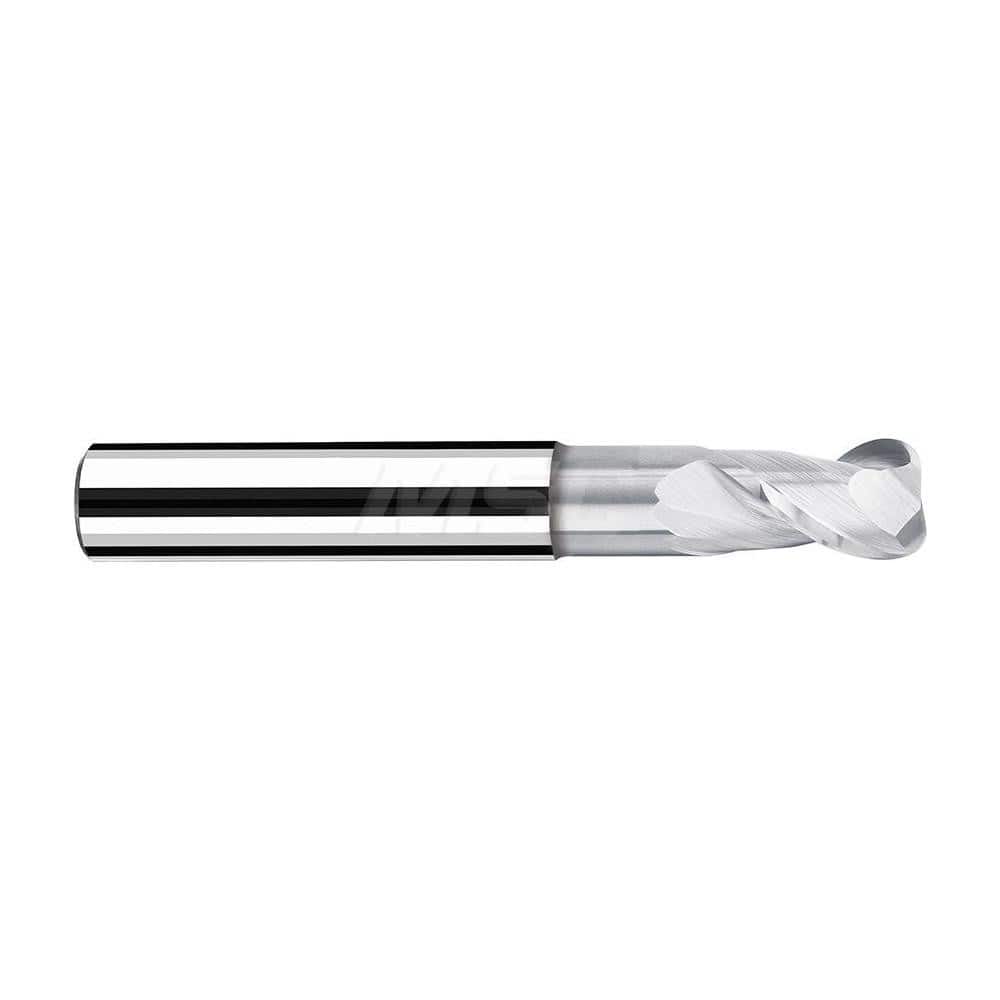

Corner Radius End Mill: 0.3937″ Dia, 0.4331″ LOC, 0.0984″ Radius, 2 Flutes, Solid Carbide 2.8346″ OAL, 0.3937″ Shank Dia, 40 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series AX-RV2
Item #: 11572773
Brand: Fraisa
Model #: 15573457
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Length of Cut (mm) | 11.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | 3xd with Neck |
| Flute Type | Spiral |
| Helix Angle | 40 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Overall Length (mm) | 72.00 |
| Overall Length (Decimal Inch) | 2.8346 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | MG10 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4331 |
