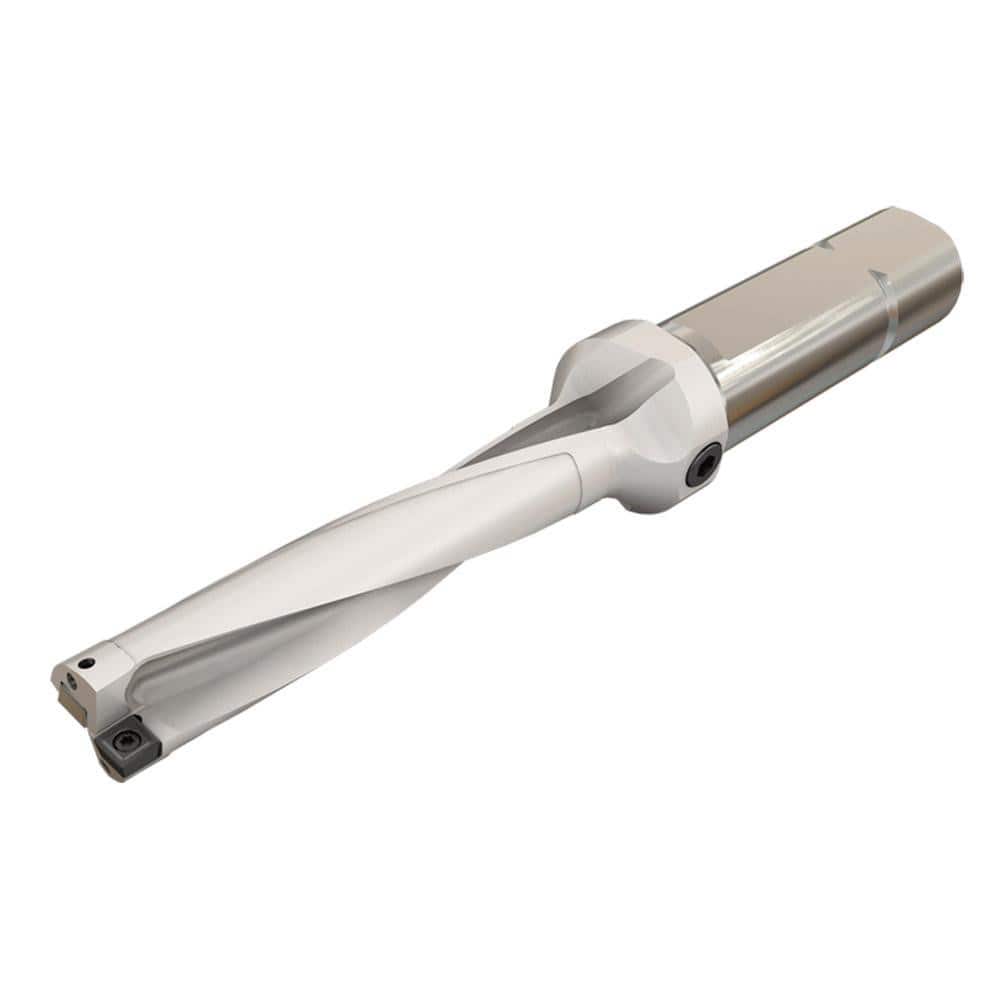

Indexable Insert Drills; Drill Style: DR; Maximum Drill Diameter (Inch): 1; Maximum Drill Diameter (Decimal Inch): 1.0000; Maximum Drill Depth (Inch): 5; Maximum Drill Depth (Decimal Inch): 5.0000; Shank Type: Straight-Cylindrical; Shank Diameter (Inch):
Item #: 11540937
Brand: Iscar
Model #: 3375644
Product Specifications
| Drill Style | DR |
| Maximum Drill Diameter (Inch) | 1 |
| Maximum Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (Inch) | 5 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.3000 |
| Overall Length (mm) | 9.30 |
| Series | DR |
| Flute Length (Decimal Inch) | 5.0000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
