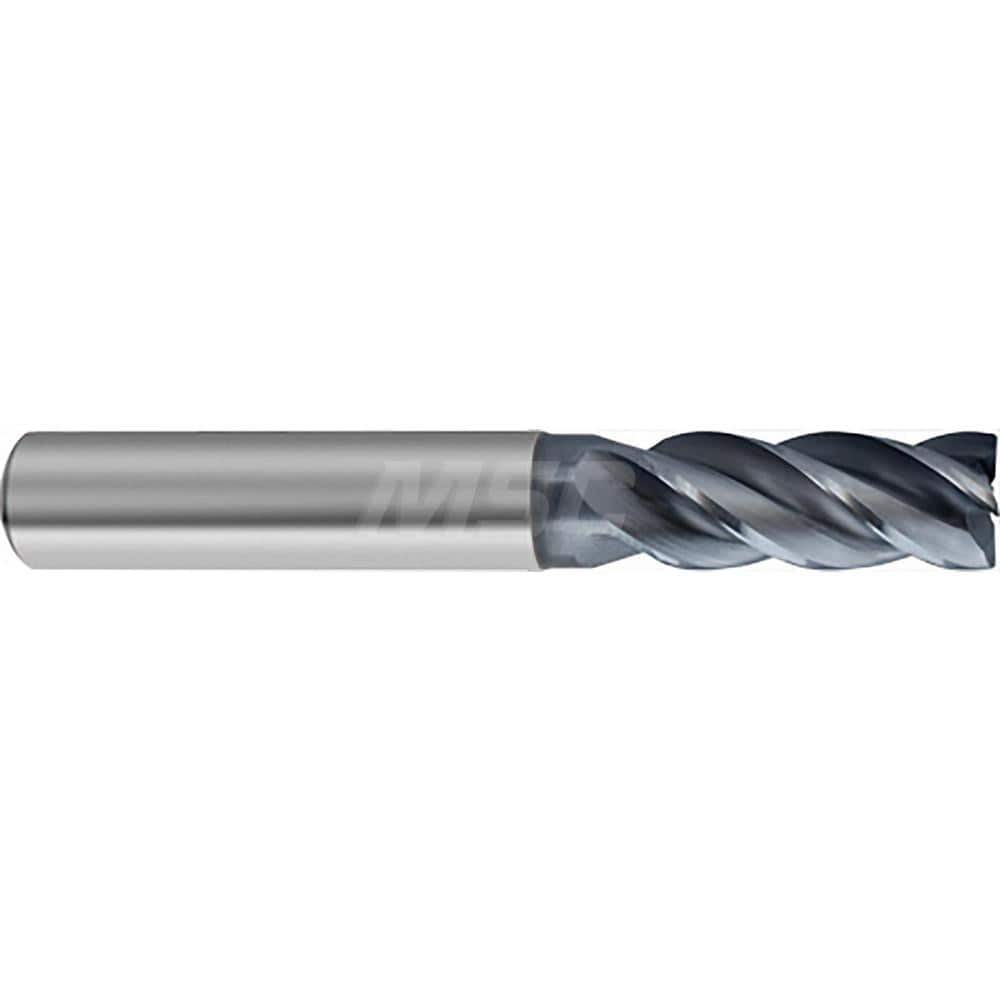

Square End Mill: 7/16'' Dia, 1'' LOC, 7/16'' Shank Dia, 2-3/4'' OAL, 4 Flutes, Solid Carbide Single End, AlCrN Finish, Helical Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 6484
Item #: 11488913
Brand: Guhring
Model #: 9064840111100
Product Specifications
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 7/16 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 2-3/4 |
| Helix Angle | 38/40 |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Overall Length (Decimal Inch) | 2.7500 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | High; Medium |
| Length Type | Standard |
| Neck Diameter (mm) | 10.59 |
| Reach Length (Decimal Inch) | 1.2461 |
| Series | 6484 |
