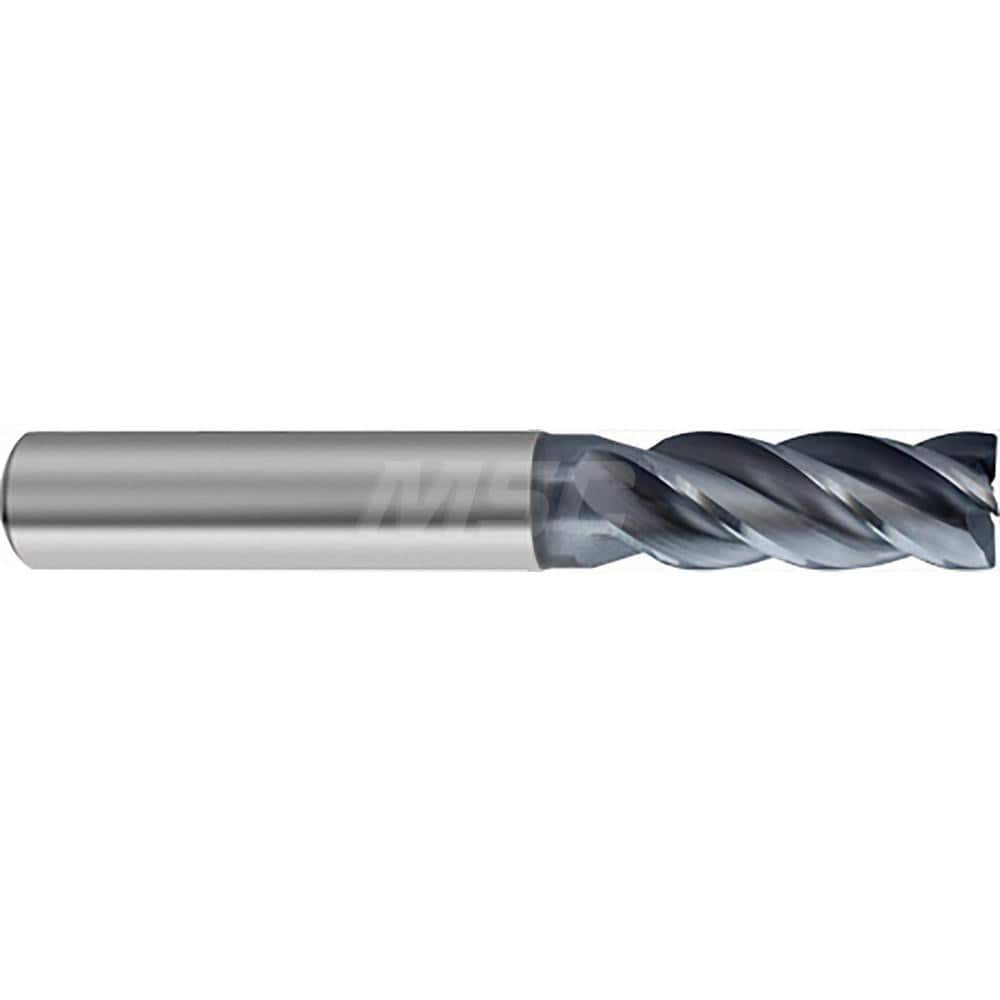

Square End Mill: 41mm LOC, 20mm Shank Dia, 104mm OAL, 4 Flutes, Solid Carbide Single End, AlCrN Finish, Helical Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 6478
Item #: 11488889
Brand: Guhring
Model #: 9064780200000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 41.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlCrN |
| Shank Diameter (mm) | 20.00 |
| Helix Angle | 38/40 |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Overall Length (mm) | 104.00 |
| Shank Type | Straight-Cylindrical |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | High; Medium |
| Length Type | Standard |
| Neck Diameter (mm) | 19.50 |
| Reach Length (mm) | 52.00 |
| Series | 6478 |
