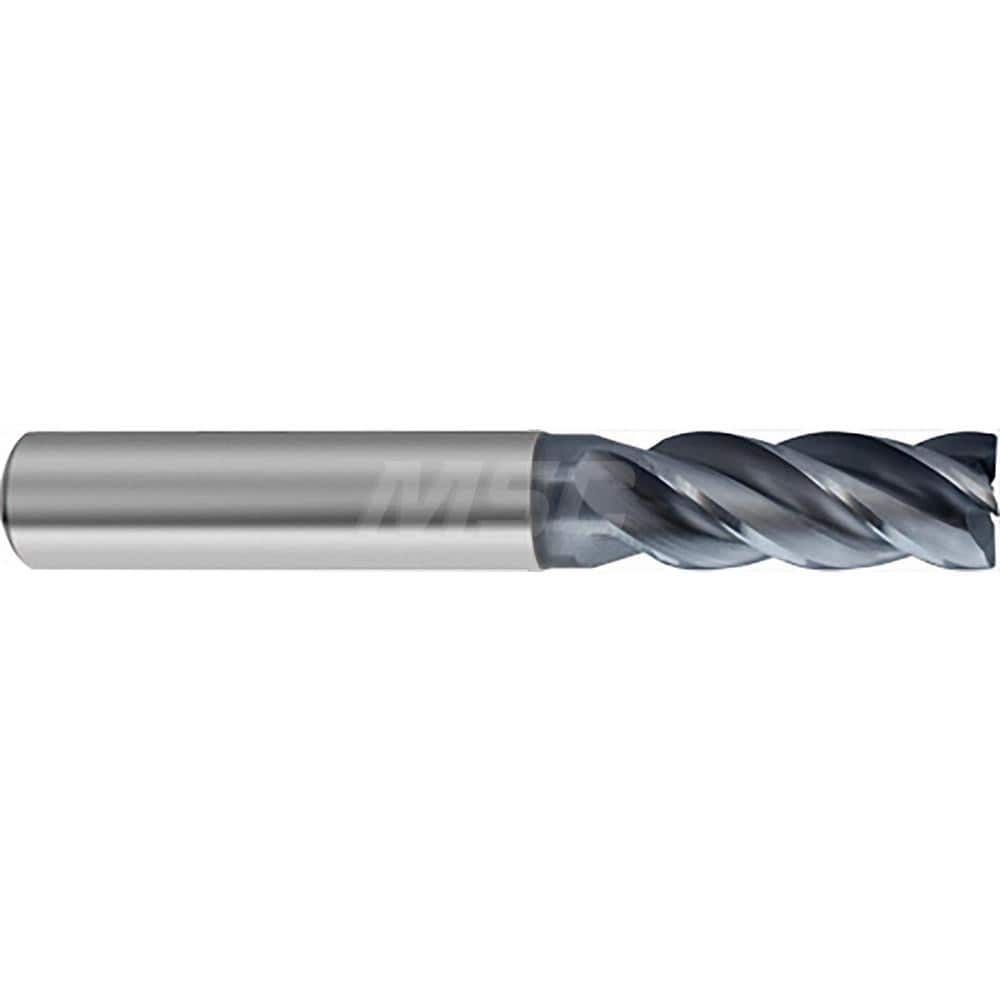

Square End Mill: 3/4'' Dia, 1-5/8'' LOC, 3/4'' Shank Dia, 4'' OAL, 4 Flutes, Solid Carbide Single End, AlCrN Finish, Helical Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 6484
Item #: 11485893
Brand: Guhring
Model #: 9064840190500
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 4 |
| Helix Angle | 38/40 |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 1.6250 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | High; Medium |
| Length Type | Standard |
| Neck Diameter (mm) | 18.54 |
| Reach Length (Decimal Inch) | 1.9291 |
| Series | 6484 |
