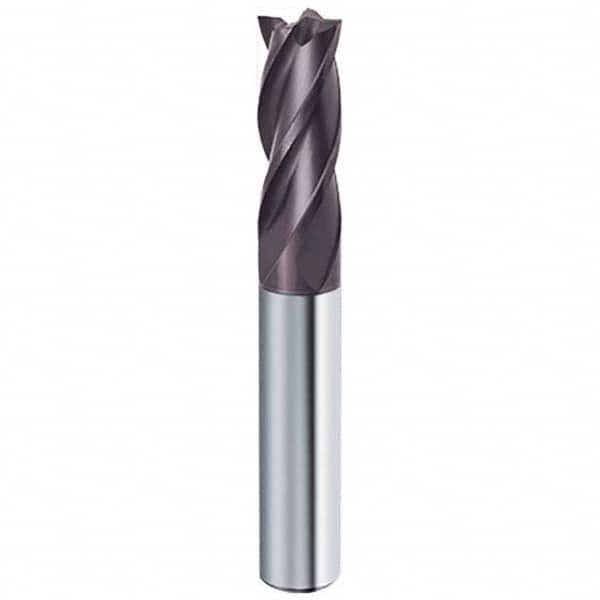

Square End Mill: 5/8'' Dia, 1-1/4'' LOC, 5/8'' Shank Dia, 3-1/2'' OAL, 4 Flutes, Solid Carbide Single End, FIREX Finish, Helical Flute, Centercutting, RH Cut, RH Flute, Series 19956
Item #: 11406543
Brand: Guhring
Model #: 9199560158700
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | FIREX |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Standard |
| Mill Diameter Tolerance | e8 |
| Through Coolant | No |
| Series | 19956 |
