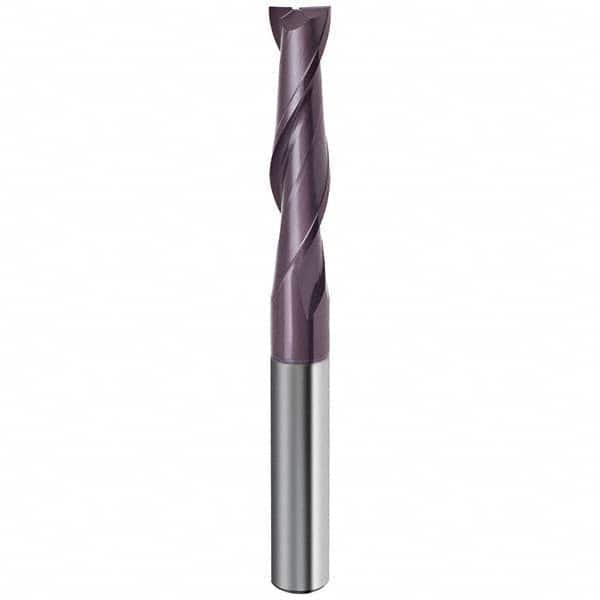

Square End Mill: 5/8'' Dia, 2-1/4'' LOC, 5/8'' Shank Dia, 5'' OAL, 2 Flutes, Solid Carbide Single End, FIREX Finish, Helical Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 11405990
Brand: Guhring
Model #: 9199530158700
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 2-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | FIREX |
| Overall Length (Inch) | 5 |
| Helix Angle | 30 |
| Chipbreaker | No |
| Variable Helix | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 2.2500 |
| Material Grade | Proprietary |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Long |
