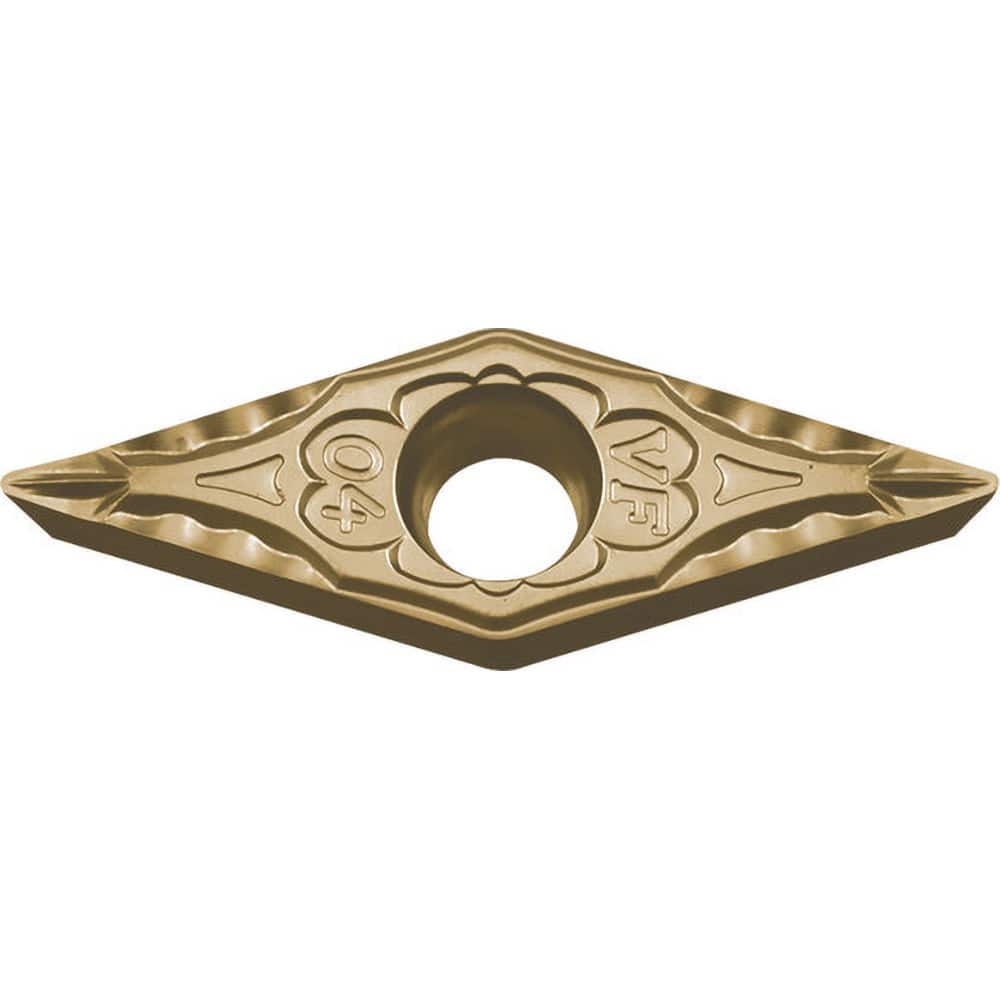

VBMT333VF CA025P Carbide Turning Insert TiCN/Al2O3/TiN Finish, Neutral, 3/8″ Inscribed Circle, 3/64″ Corner Radius, 35° Diamond, Series VBMT
Item #: 11382512
Brand: Kyocera
Model #: TMH00515
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 333 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA025P |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBMT |
| Coating Process | CVD |
| Rake | Positive |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | P |
| Ansi Code | VBMT333VFCA025P |
| Iso Code | VBMT160412VF |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | VBMT333VF CA025P |
| Material Grade | Micro Columnar |
| Chip Breaker | VF |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
