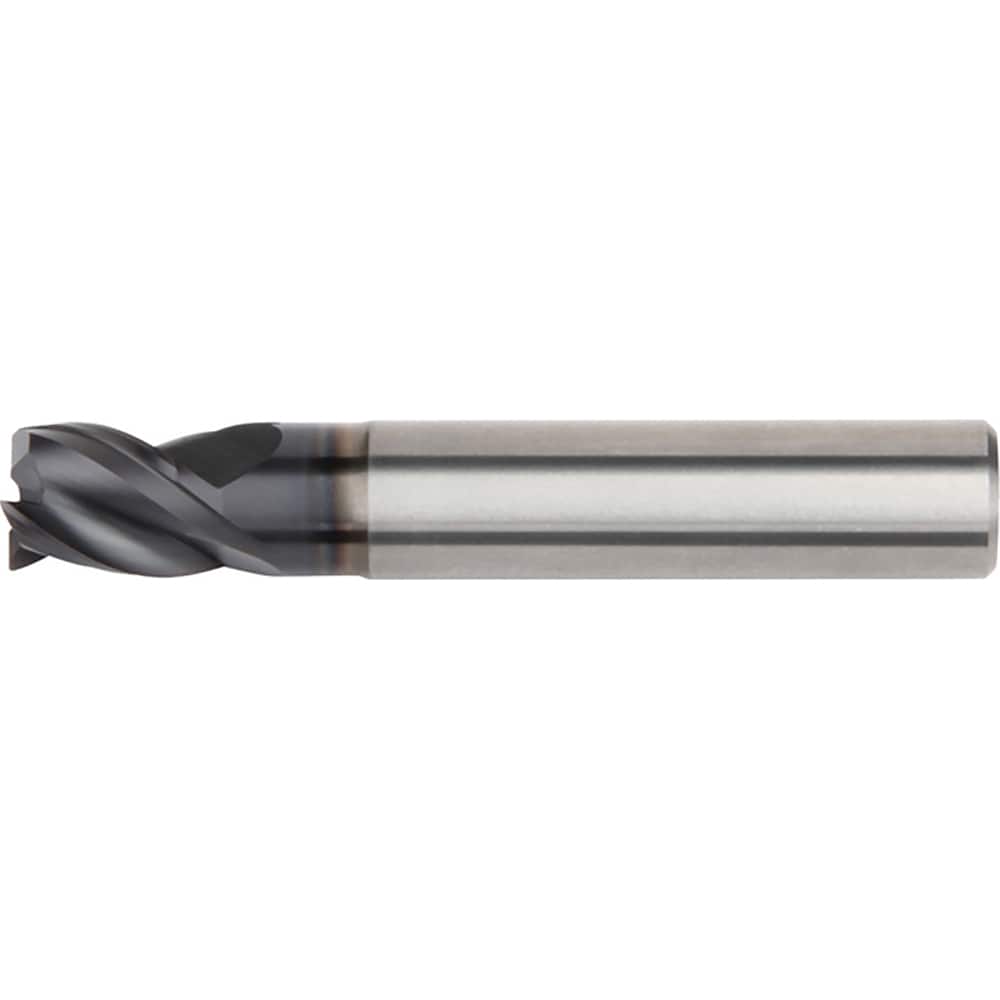

Corner Radius End Mill: 0.6969″ Dia, 3 Flutes, Solid Carbide 45 ° Helix, AlTiN Coated, Corner Radius End, Series MT601
Item #: 11330164
Brand: Kennametal
Model #: 5536171
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6969 |
| Mill Diameter (mm) | 17.70 |
| Corner Radius (mm) | 0.40 |
| Length of Cut (mm) | 19.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Shank Type | Weldon Flat |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 18.0000 |
| Neck Diameter (mm) | 17.60 |
| Overall Length (mm) | 84.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | MT601 |
| Single Or Double End | Single |
| Manufacturers Catalog Number | MT60144602 |
| Coating/Finish | AlTiN |
