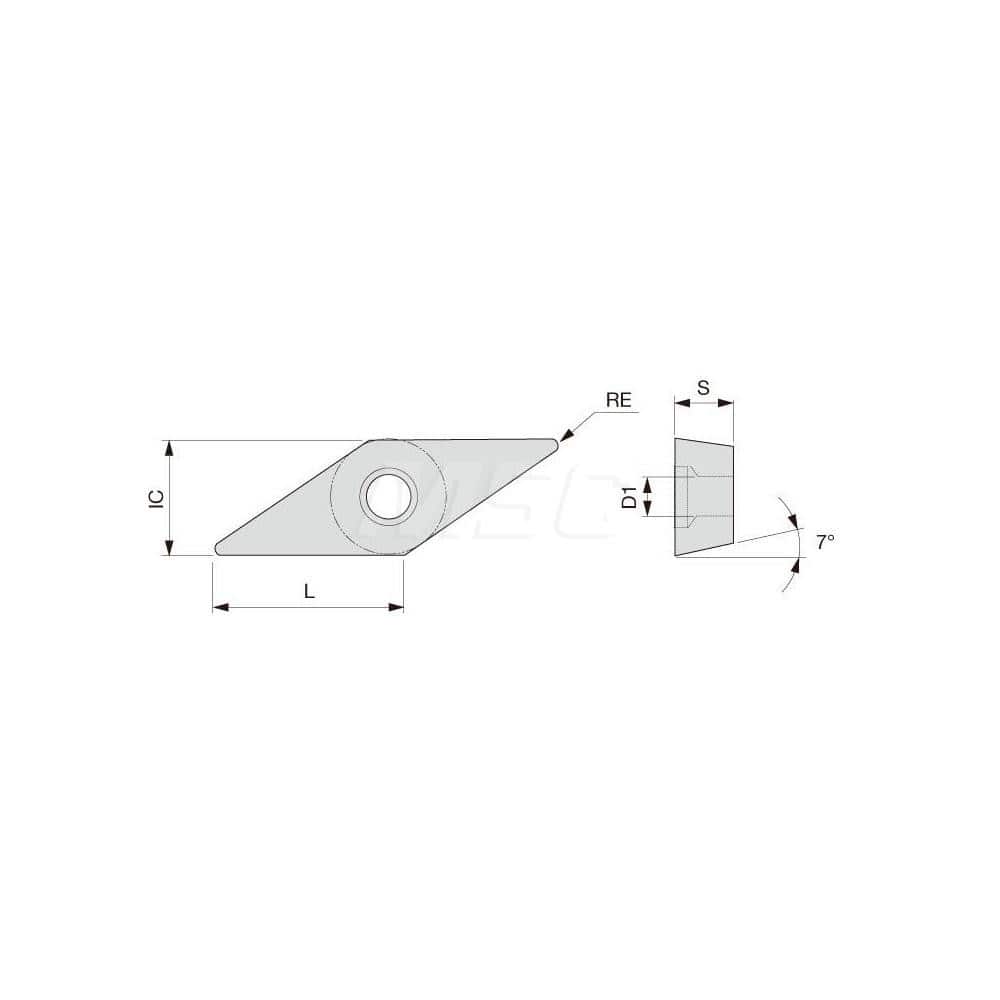

Turning Insert: VCMT220.5PS AH8015, Solid Carbide TiAlN Finish, Neutral, 1/4″ Inscribed Circle, 0.0080″ Corner Radius, 35.0 ° N/A Diamond, Series VCMT
Item #: 11314267
Brand: Tungaloy
Model #: 6775808
Product Specifications
| Insert Style | VCMT |
| Insert Size Code | 220.5 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8015 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; M |
| Ansi Code | VCMT220.5PSAH8015 |
| Iso Code | VCMT110302-PS AH8015 |
| Chip Breaker | PS |
| Coating/Finish | TiAlN |
