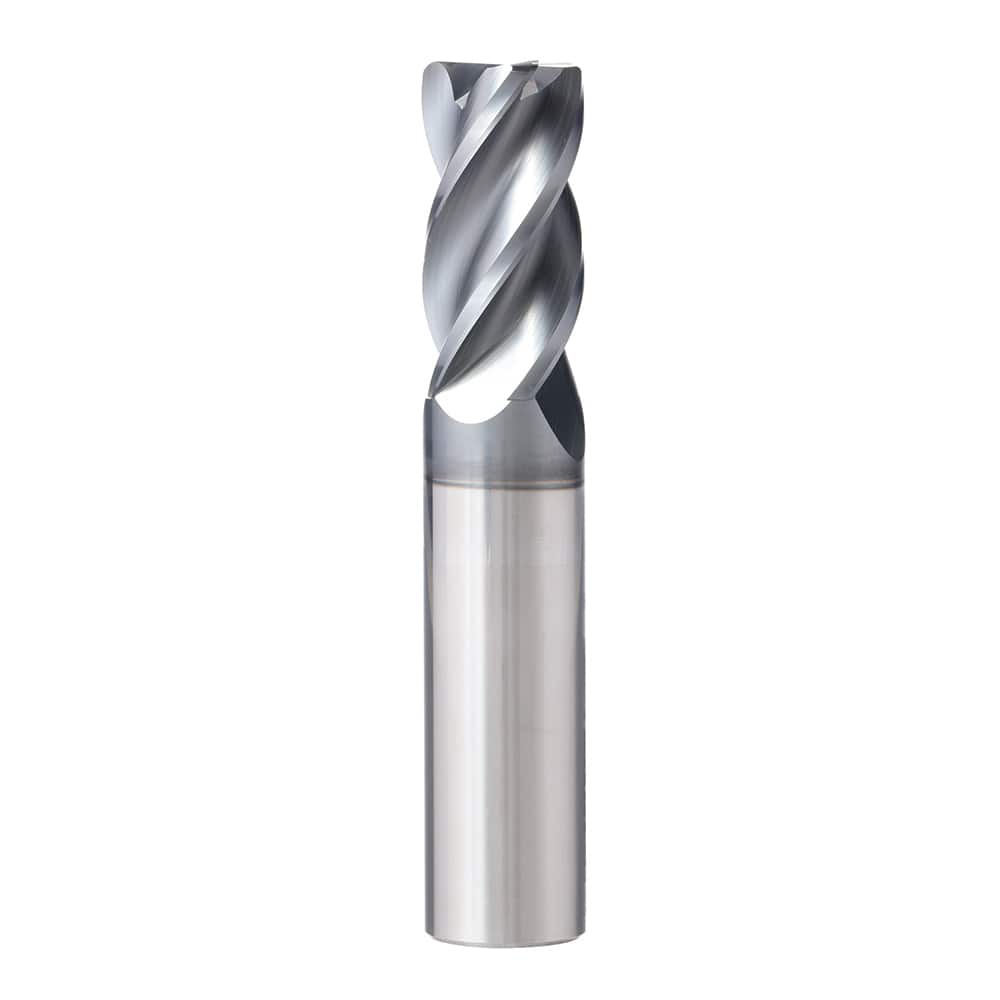

Corner Radius End Mill: 3/4″ Dia, 1″ LOC, 0.045″ Radius, 4 Flutes, Solid Carbide 3″ OAL, 3/4″ Shank Dia, 37 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series XPV
Item #: 11308483
Brand: Supermill
Model #: XPV750S-045
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0450 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 37 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Material Grade | Micrograin |
| Series | XPV |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
