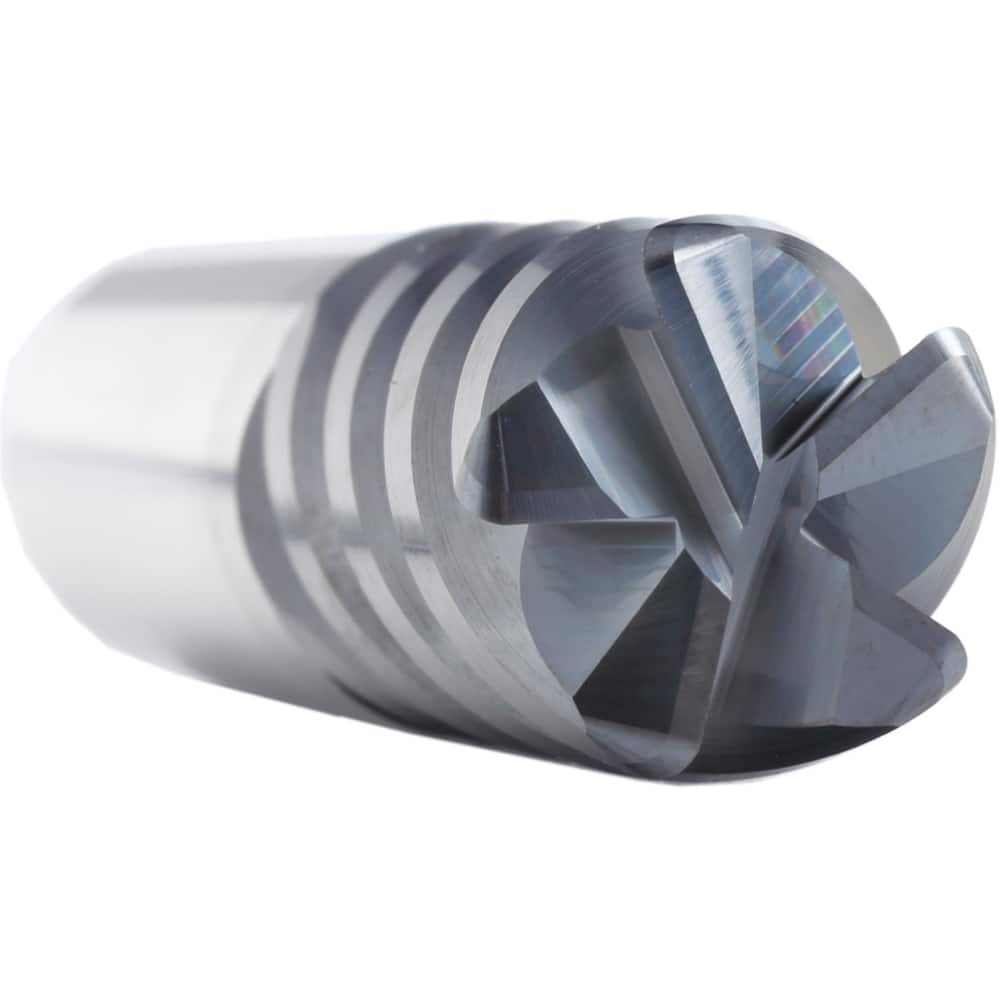

Supermill - Square End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; Number of Flutes: 5 ; Length of Cut (mm): 22.0000 ; Length of Cut (Decimal Inch): 0.8661 ; Material: Solid Carbide
Item #: 11307923
Brand: Supermill
Model #: MSM5F10A
Product Specifications
Square End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; Number of Flutes: 5 ; Length of Cut (mm): 22.0000 ; Length of Cut (Decimal Inch): 0.8661 ; Material: Solid Carbide
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 5 |
| Length of Cut (mm) | 22.0000 |
| Length of Cut (Decimal Inch) | 0.8661 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 67.0000 |
| Overall Length (Decimal Inch) | 2.63780 |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Series/List | MSM5F-NB |
