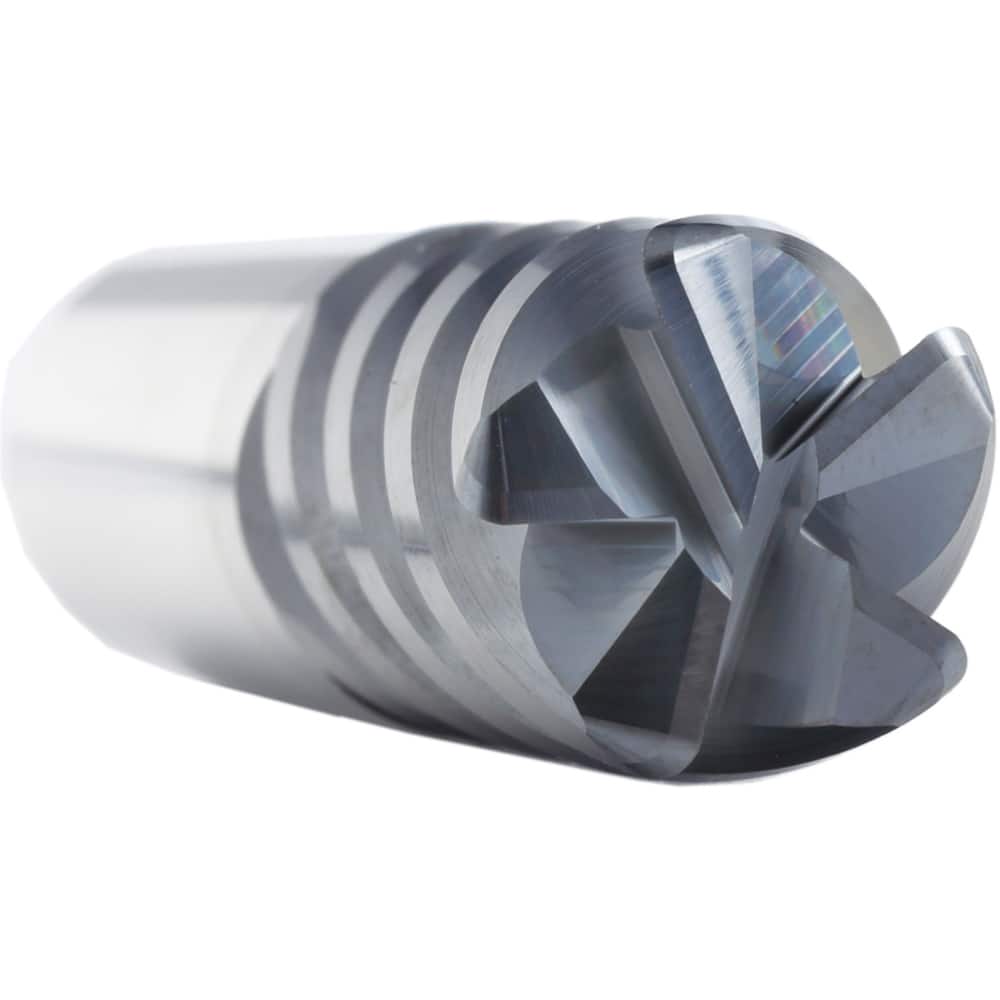

Square End Mill: 0.4724'' Dia, 0.9843'' LOC, 0.4724'' Shank Dia, 2.9134'' OAL, 5 Flutes, Solid Carbide AlCrN Finish, 45 ° Helix, Centercutting, Series MSM5F
Item #: 11307634
Brand: Supermill
Model #: MSM5F12
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 25.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlCrN |
| Shank Diameter (mm) | 12.00 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Overall Length (mm) | 74.00 |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Length of Cut (Decimal Inch) | 0.9843 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Series | MSM5F |
