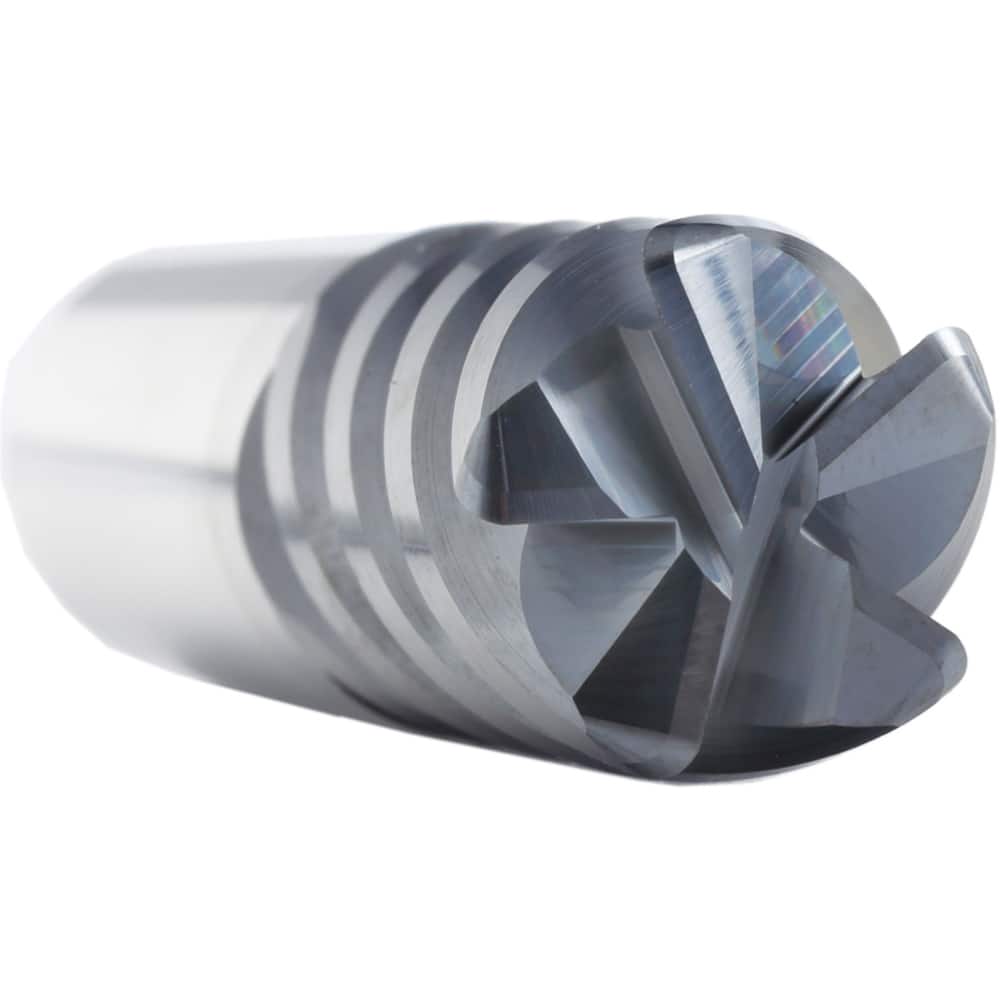

Square End Mill: 5/16'' Dia, 1/2'' LOC, 5/16'' Shank Dia, 2'' OAL, 5 Flutes, Solid Carbide AlTiN Finish, 45 ° Helix, Centercutting, Series SM5F-NB
Item #: 11307600
Brand: Supermill
Model #: SM5F312SA
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Series | SM5F-NB |
