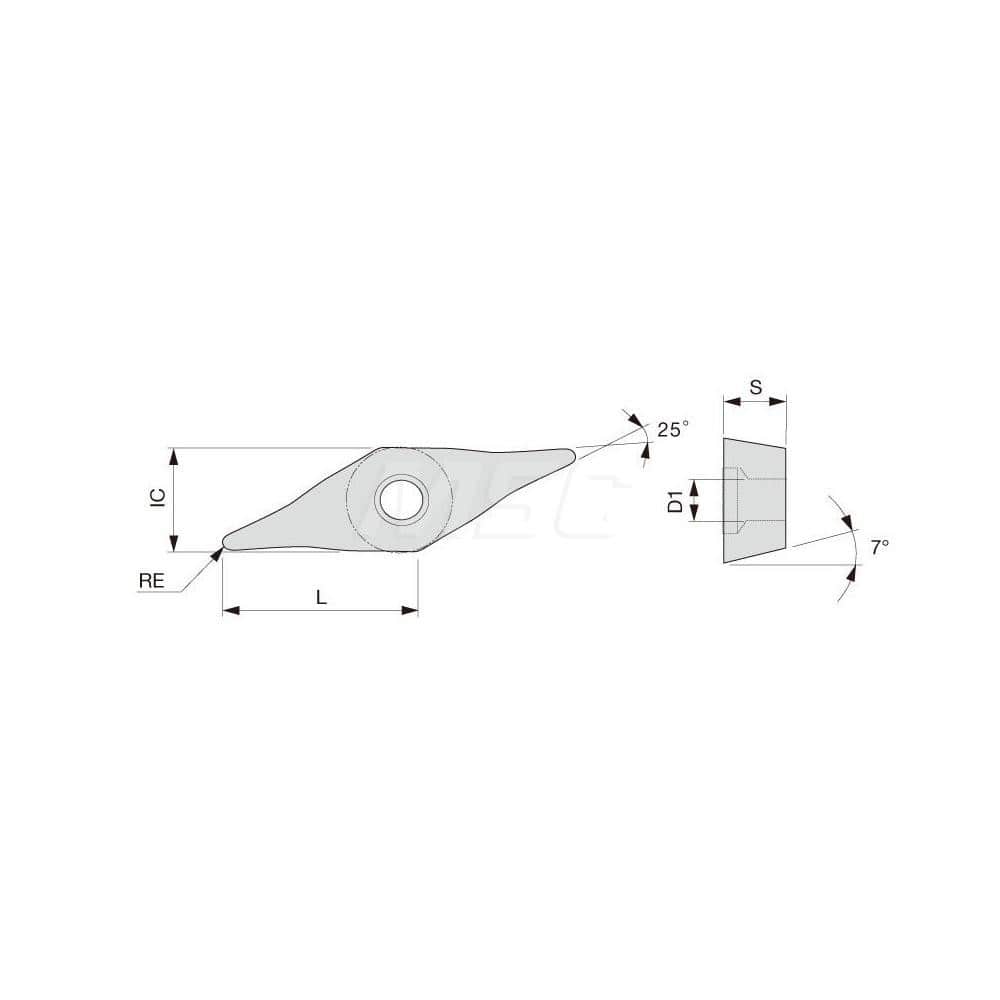

Turning Insert: YWMT11T204-ZM T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0160″ Corner Radius, 25.0 ° N/A Diamond, Series YWMT
Item #: 11291960
Brand: Tungaloy
Model #: 6781167
Product Specifications
| Insert Style | YWMT |
| Insert Size Code | 11T204 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Decimal Inch) | 0.1840 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 25.0 |
| Relief Angle | 7 |
| Series | YWMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | YWMT11T204ZMT9225 |
| Iso Code | YWMT11T204-ZM T9225 |
| Chip Breaker | Y-ZM |
| Coating/Finish | TiCN; TiN; Al2O3 |
