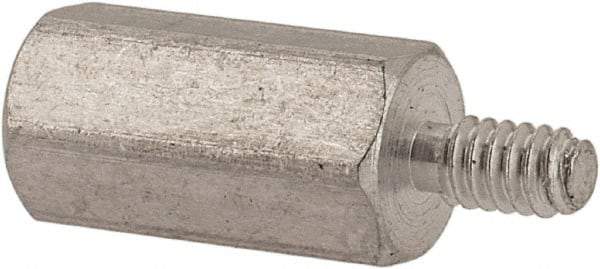

Made in USA - Circuit Board Standoffs Thread Type: Male/Female Material: Aluminum
Item #: 11168895
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Product Specifications
Circuit Board Standoffs; Thread Type: Male/Female ; Material: Aluminum ; System of Measurement: Inch ; Body Shape: Hex ; Overall Length (Decimal Inch): 0.4060 ; Thread Style: Fully Threaded
| Thread Type | Male/Female |
| Material | Aluminum |
| System of Measurement | Inch |
| Body Shape | Hex |
| Overall Length (Decimal Inch) | 0.4060 |
| Thread Style | Fully Threaded |
| Thread Size | #2-56 |
| Width Across Flats (Decimal Inch) | 0.1870 |
| Finish/Coating | Uncoated |
| Body Length (Inch) | 1/4 |
