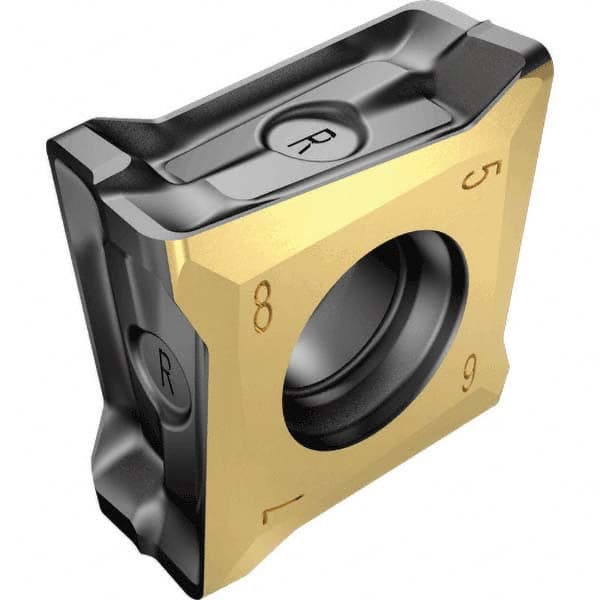

Iscar - T890LNHT1306PNTR Carbide Milling Insert
Item #: 11163524
Brand: Iscar
Model #: 3362797
Product Specifications
| Insert Style | LNHT |
| Insert Size | 1306 |
| Material | Carbide |
| Manufacturer's Grade | IC5100 |
| Coating | TiAlN/Al2O3 |
| Width (mm) | 6.00 |
| Width (Decimal Inch) | 0.2362 |
| Length (mm) | 13.78 |
| Length (Decimal Inch) | 0.5425 |
| Thickness (mm) | 2.20 |
| Thickness (Decimal Inch) | 0.0866 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (mm) | 0.80 |
| Coating Process | CVD |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutter Series Compatibility | LNHT |
