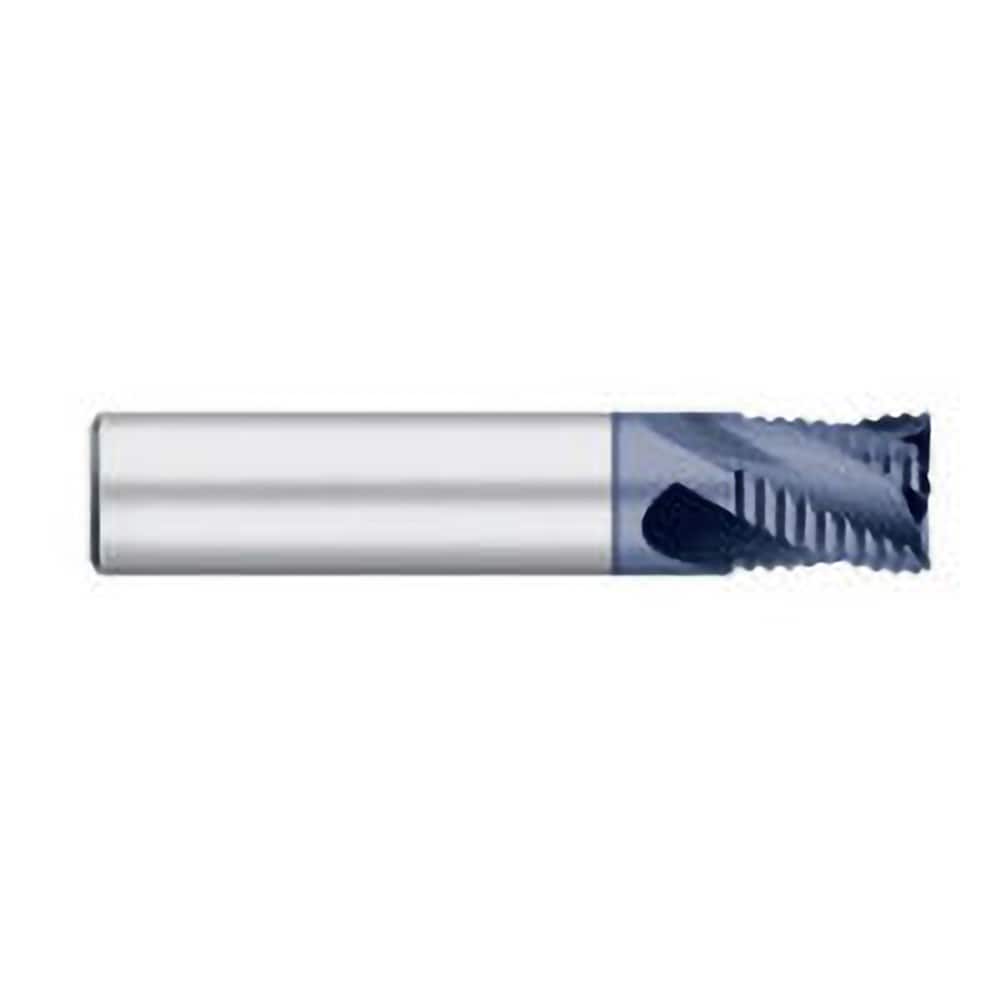

Titan USA - Roughing End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 4 ; Pitch: Fine ; Length of Cut (Inch): 9/16 ; Length of Cut (Decimal Inch): 0.5625
Item #: 11148996
Brand: Titan USA
Model #: TC29324
Product Specifications
Roughing End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 4 ; Pitch: Fine ; Length of Cut (Inch): 9/16 ; Length of Cut (Decimal Inch): 0.5625
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Pitch | Fine |
| Length of Cut (Inch) | 9/16 |
| Length of Cut (Decimal Inch) | 0.5625 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| End Type | Square |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2 |
| Centercutting | Center Cutting |
| Helix Angle | 30.00 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Stub |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.00000 |
| Series/List | 293 |
