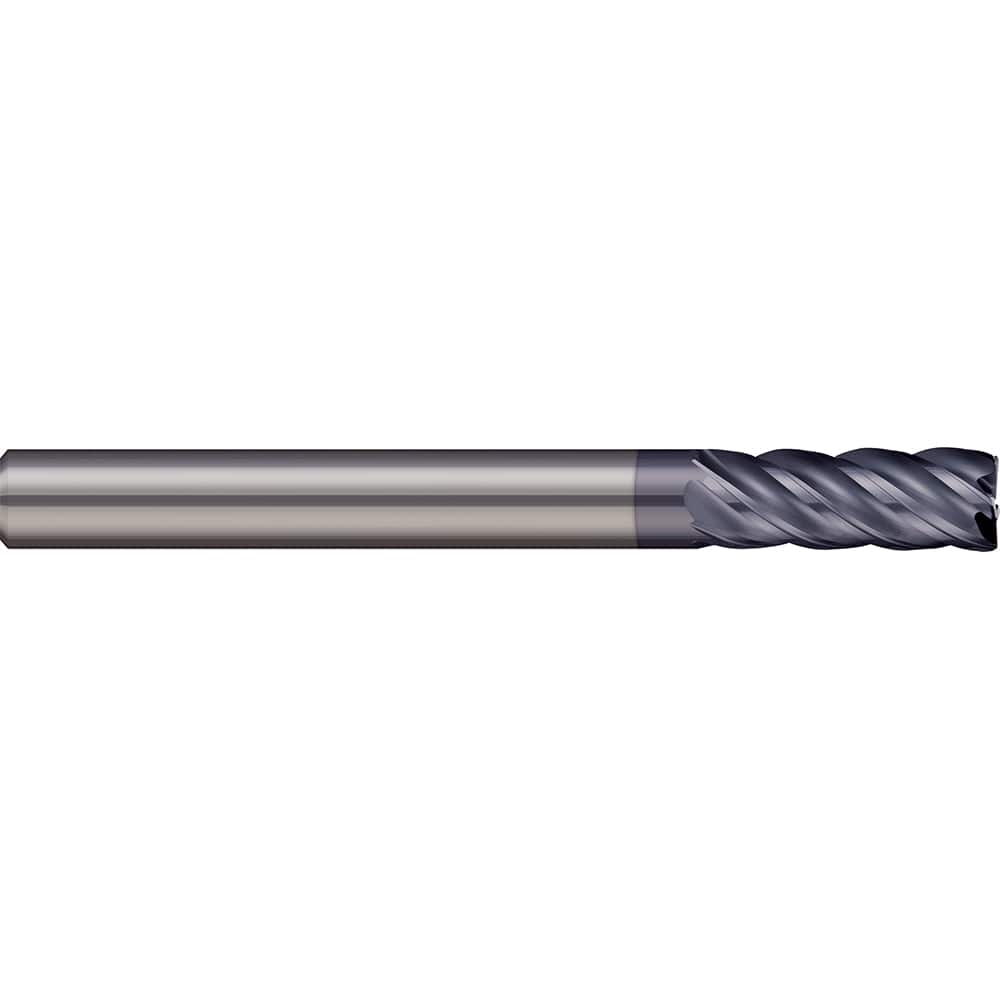

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.30 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 11140811
Brand: Micro 100
Model #: VHMM-030-5K
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.30 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.30 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | nACRo |
| Length of Cut (mm) | 8.0000 |
| Length of Cut (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 4.0000 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Shank Type | Weldon Flat |
| Series/List | End Mills for Steels & High Temperature Alloys - Corner Radius - 5 Flute - Variable Helix |
