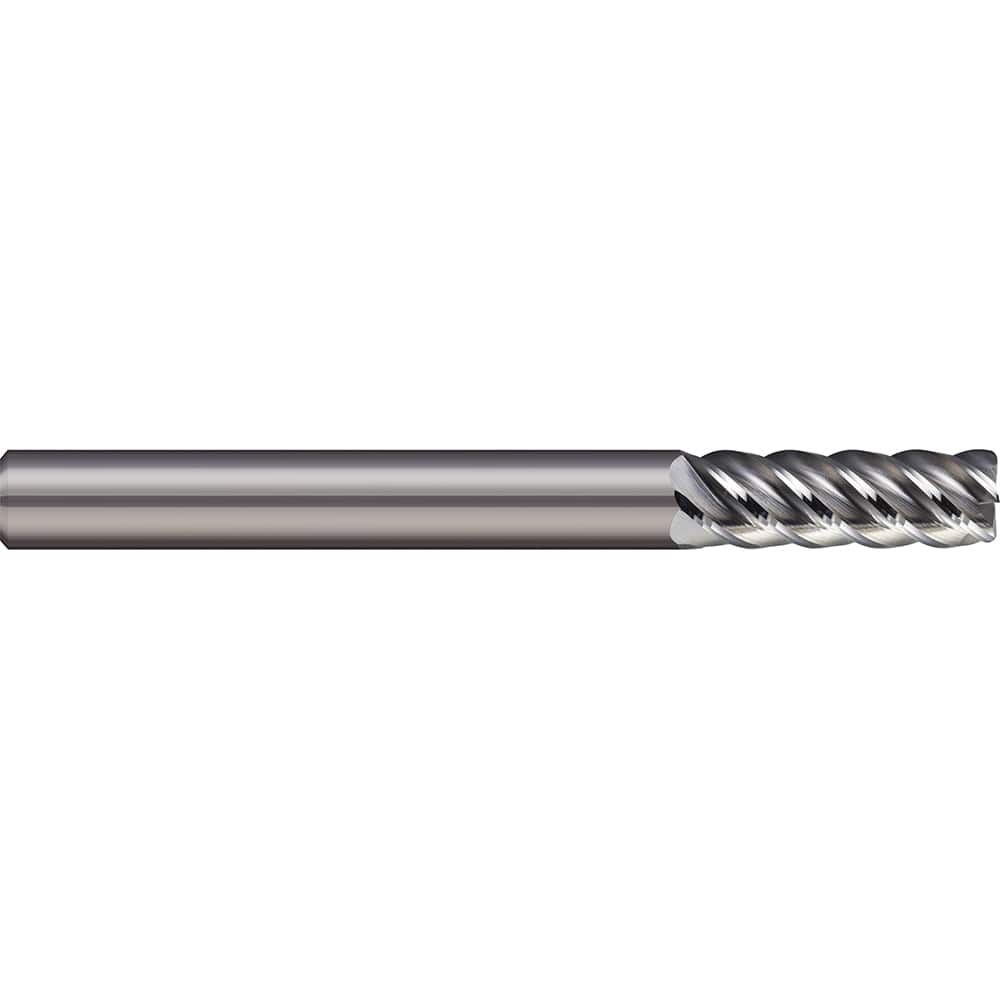

Corner Radius End Mill: 1/2″ Dia, 1″ LOC, 0.01″ Radius, 5 Flutes, Solid Carbide 3″ OAL, 1/2″ Shank Dia, 45 ° Helix, Bright/Uncoated, Corner Radius End
Item #: 11140472
Brand: Micro 100
Model #: ARC-500-5-010
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Upcut |
| Helix Angle | 45 |
| Shank Type | Weldon Flat |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | End Mills for Steels & High Temperature Alloys - Corner Radius - 5 Flute |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
