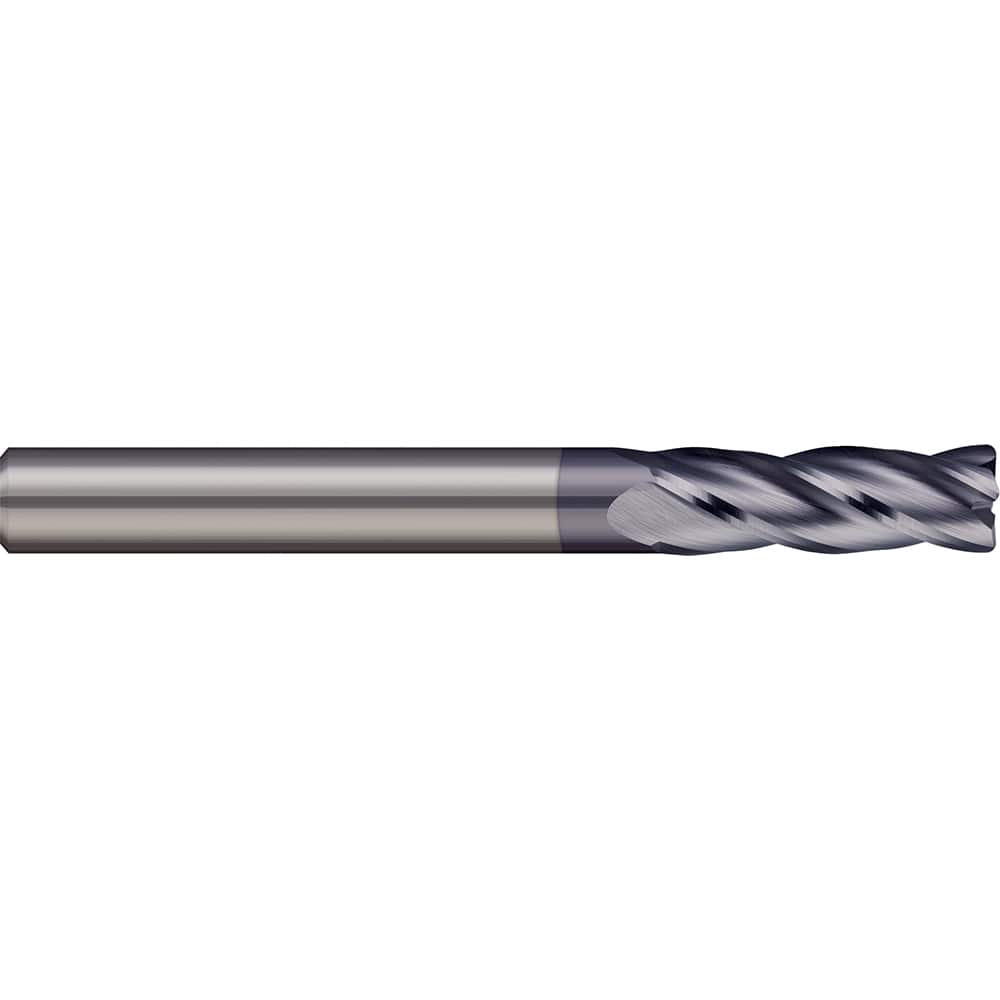

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0312 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 11139938
Brand: Micro 100
Model #: GEC-031-3-005X
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0312 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0312 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 5/64 |
| Length of Cut (Decimal Inch) | 0.0780 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills - Corner Radius - 2, 3, 4 Flute |
