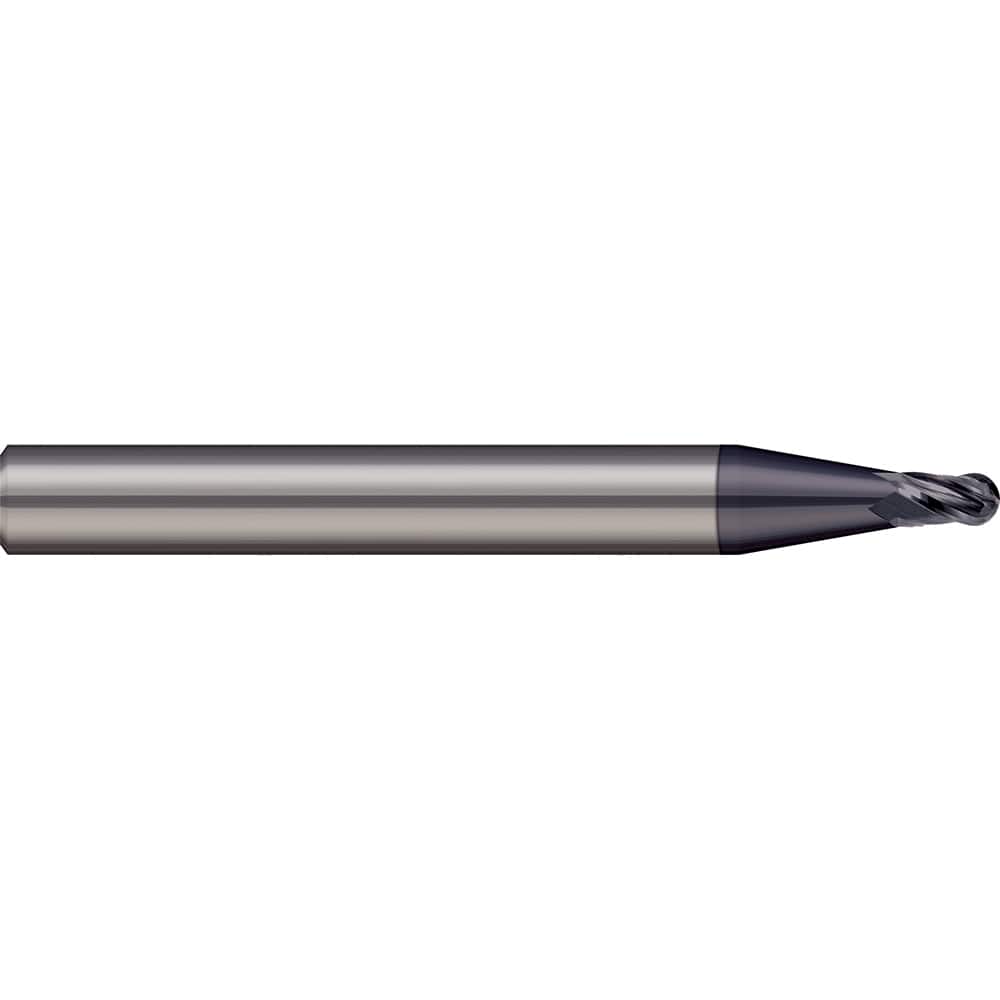

Micro 100 - Ball End Mills; Mill Diameter (mm): 0.20 ; Mill Diameter (Decimal Inch): 0.0079 ; Number of Flutes: 2 ; Length of Cut (mm): 0.3000 ; Length of Cut (Decimal Inch): 0.0118 ; Material: Solid Carbide
Item #: 11136876
Brand: Micro 100
Model #: BEFM-002-030K
Product Specifications
Ball End Mills; Mill Diameter (mm): 0.20 ; Mill Diameter (Decimal Inch): 0.0079 ; Number of Flutes: 2 ; Length of Cut (mm): 0.3000 ; Length of Cut (Decimal Inch): 0.0118 ; Material: Solid Carbide
| Mill Diameter (mm) | 0.20 |
| Mill Diameter (Decimal Inch) | 0.0079 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 0.3000 |
| Length of Cut (Decimal Inch) | 0.0118 |
| Material | Solid Carbide |
| Overall Length (mm) | 37.5000 |
| Shank Diameter (mm) | 3.0000 |
| Finish/Coating | nACRo |
| Single or Double End | Single |
| Helix Angle | 20 |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Additional Information | End Mills for Steels & High Temperature Alloys - Ball - 2 & 3 Flute - Stub Flute |
