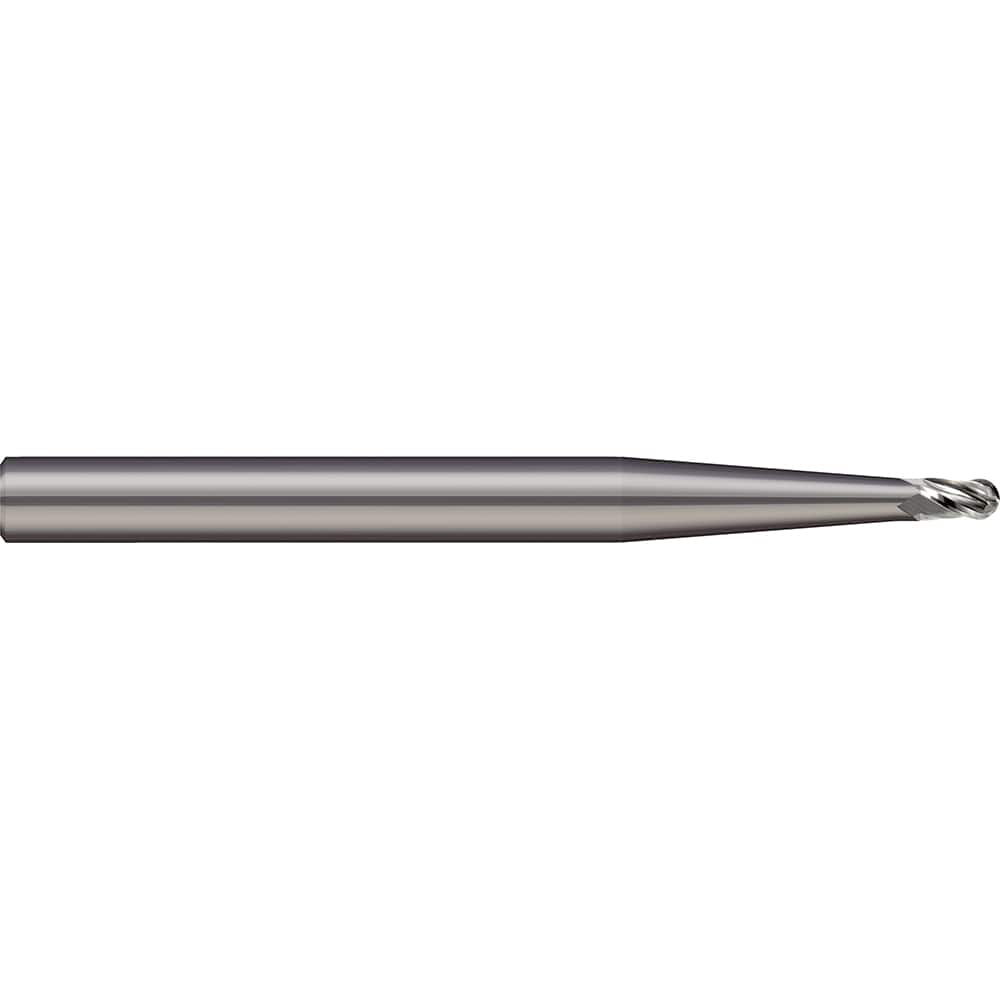

Ball End Mill: 0.0354″ Dia, 0.1063″ LOC, 2 Flute, Solid Carbide 50 mm OAL, 4 mm Shank Dia, 30 ° Helix, Uncoated, Single End
Item #: 11136744
Brand: Micro 100
Model #: BMRM-009-2
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0354 |
| Mill Diameter (mm) | 0.90 |
| Length of Cut (mm) | 2.70 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 50.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills - Ball - 2, 3, 4 Flute - Stub & Standard |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1063 |
