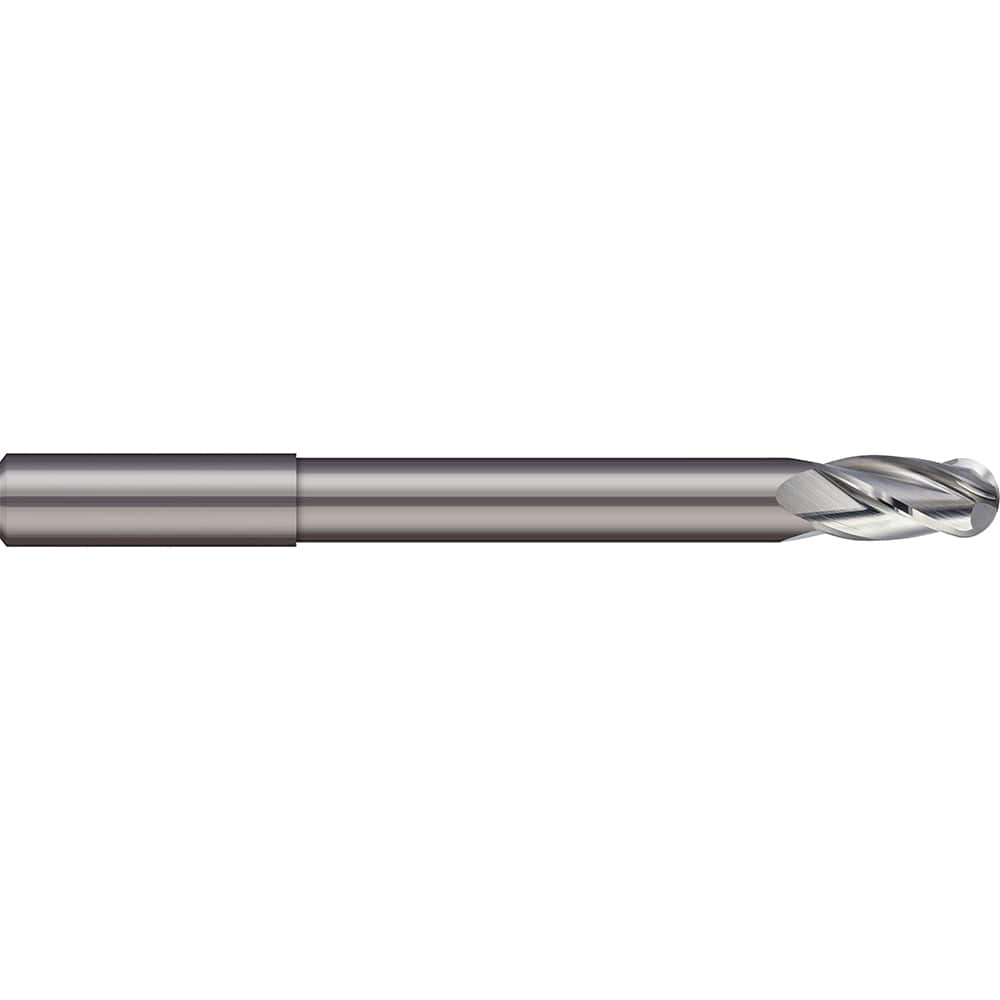

Ball End Mill: 0.5″ Dia, 1″ LOC, 4 Flute, Solid Carbide 6″ OAL, 1/2″ Shank Dia, 30 ° Helix, Uncoated, Single End
Item #: 11136231
Brand: Micro 100
Model #: BLR-500-4
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 4-1/2 |
| Reach Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills - Ball - 2, 3, 4 Flute - Reduced Neck |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
