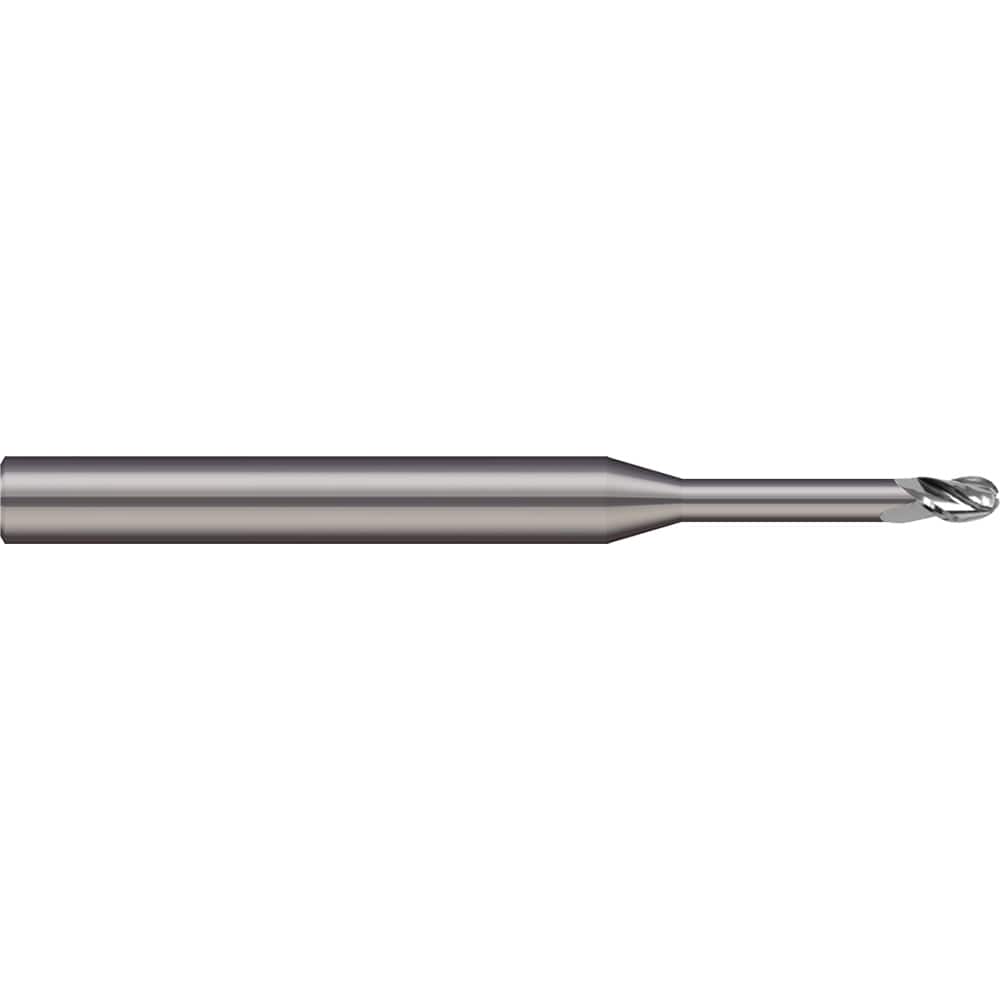

Ball End Mill: 0.0236″ Dia, 0.0354″ LOC, 2 Flute, Solid Carbide 37.5 mm OAL, 3 mm Shank Dia, 20 ° Helix, Uncoated, Single End
Item #: 11134673
Brand: Micro 100
Model #: BEFM-006-300
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0236 |
| Mill Diameter (mm) | 0.60 |
| Length of Cut (mm) | 0.90 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Shank Diameter (mm) | 3.00 |
| Reach Length (mm) | 3.00 |
| Overall Length (mm) | 37.50 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills for Steels & High Temperature Alloys - Ball - 2 & 3 Flute - Long Reach, Stub Flute |
| Centercutting | Yes |
| Single Or Double End | Single |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0354 |
