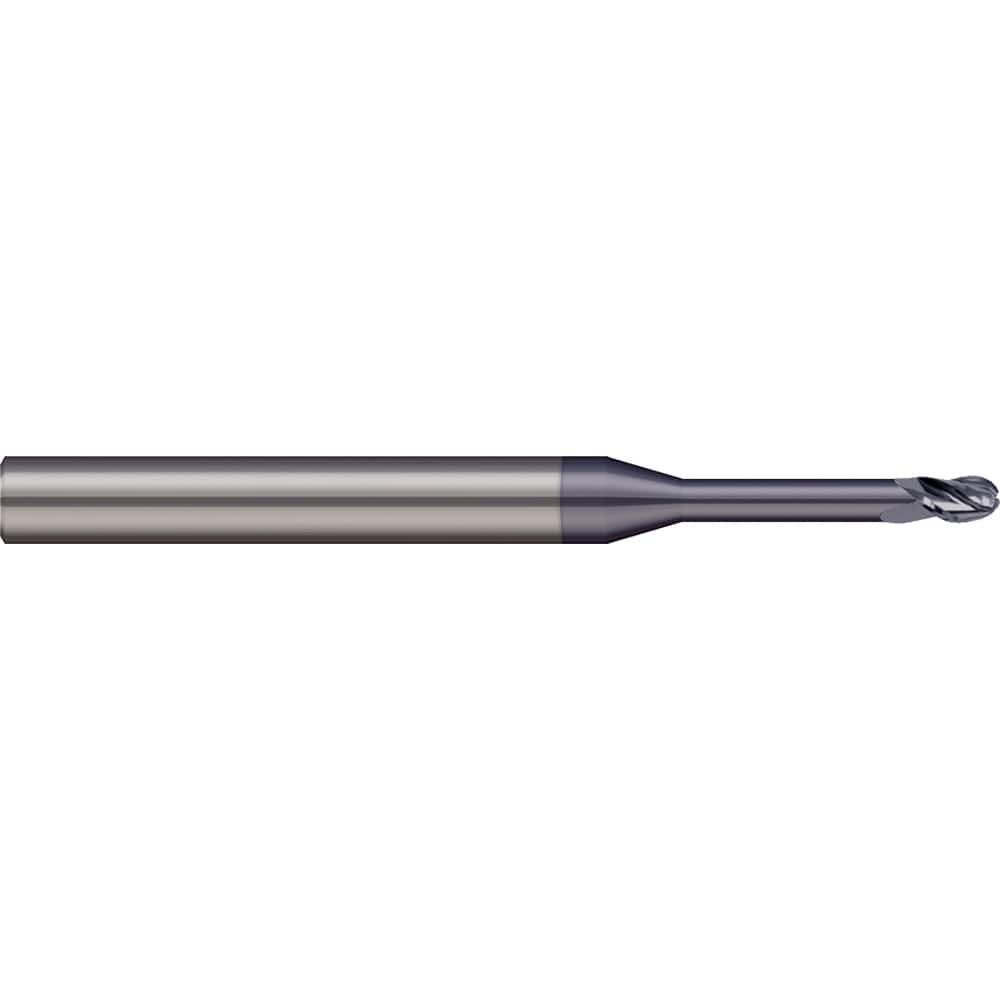

Micro 100 - Ball End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Number of Flutes: 2 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
Item #: 11134301
Brand: Micro 100
Model #: BEF-250-1000K
Product Specifications
Ball End Mills; Mill Diameter (Inch): 1/4 ; Mill Diameter (Decimal Inch): 0.2500 ; Number of Flutes: 2 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | nACRo |
| Single or Double End | Single |
| Helix Angle | 20 |
| Variable Helix | No |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Additional Information | End Mills for Steels & High Temperature Alloys - Ball - 2 & 3 Flute - Long Reach, Stub Flute |
