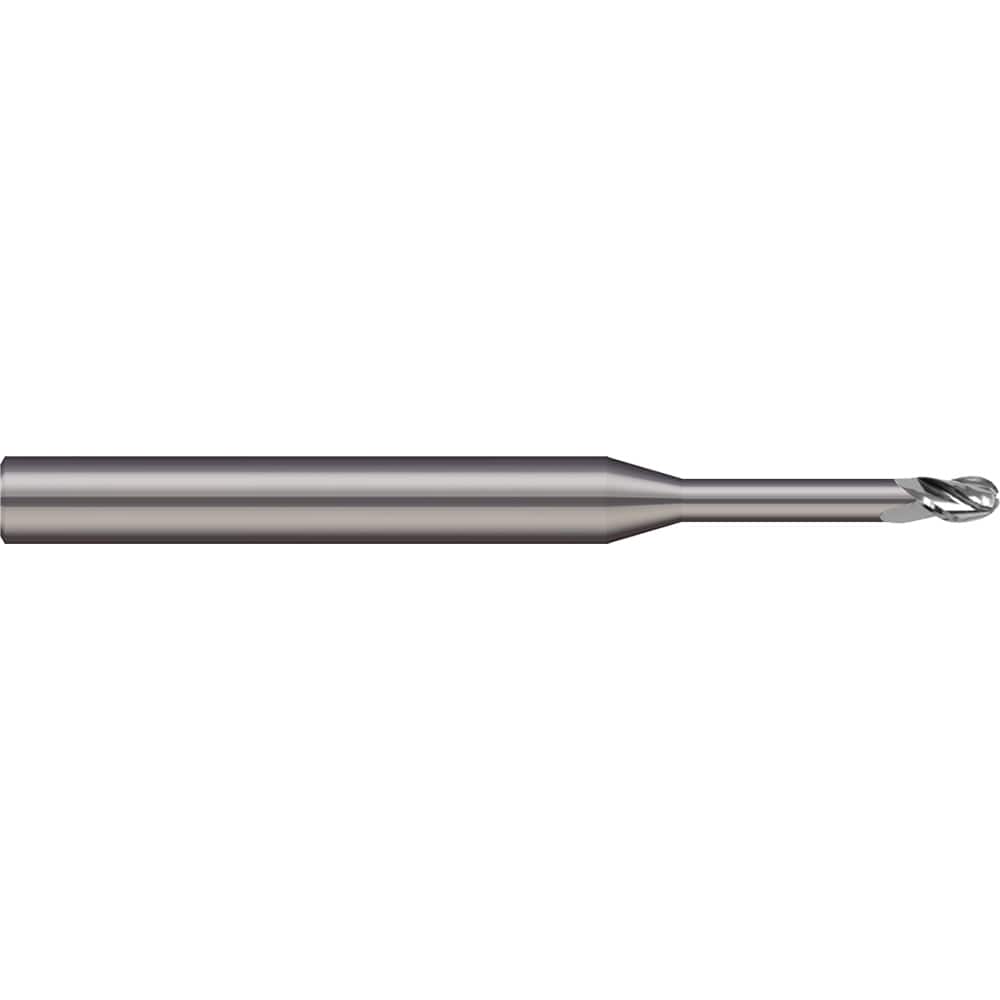

Ball End Mill: 0.09″ Dia, 0.125″ LOC, 3 Flute, Solid Carbide 2″ OAL, 1/8″ Shank Dia, 20 ° Helix, Uncoated, Single End
Item #: 11134004
Brand: Micro 100
Model #: BEF-090-650-3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0900 |
| Length of Cut (Inch) | 1/8 |
| End Mill Material | Solid Carbide |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Reach Length (Decimal Inch) | 0.6500 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills for Steels & High Temperature Alloys - Ball - 2 & 3 Flute - Long Reach, Stub Flute |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1250 |
