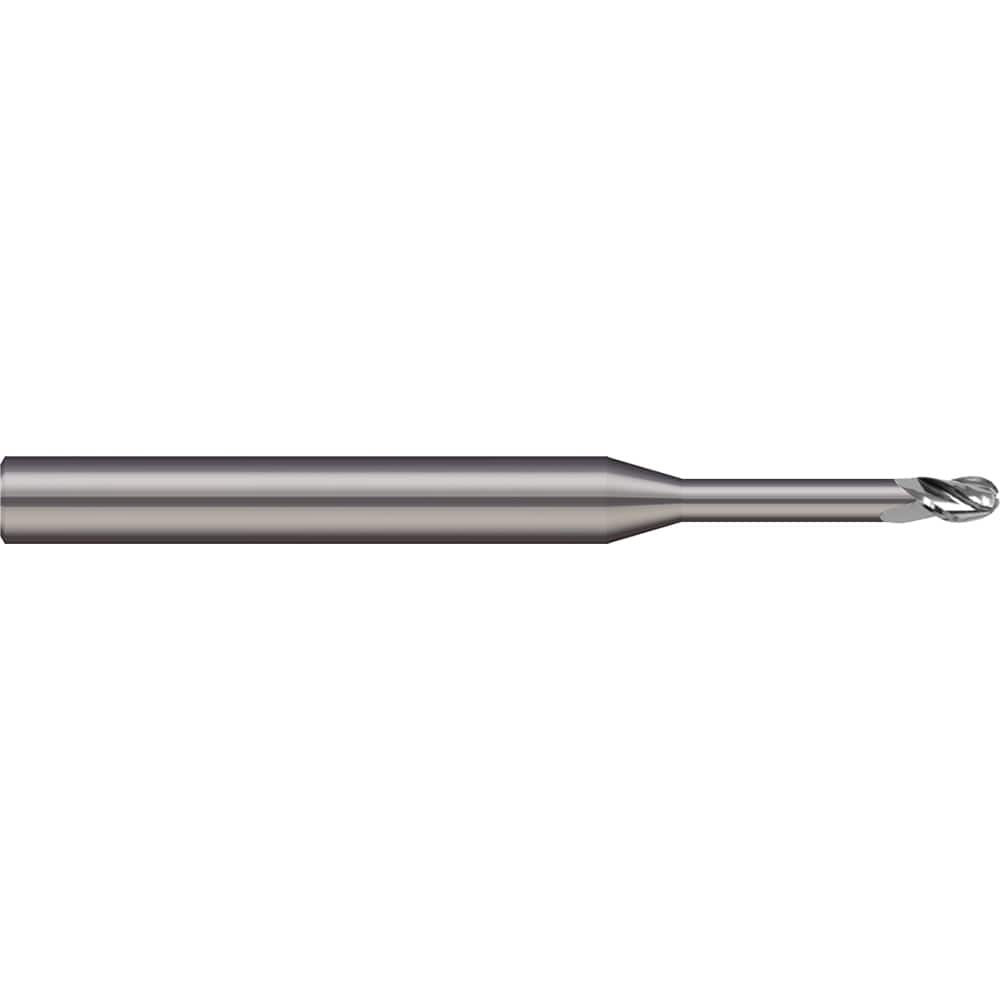

Ball End Mill: 0.025″ Dia, 0.038″ LOC, 3 Flute, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 20 ° Helix, Uncoated, Single End
Item #: 11133436
Brand: Micro 100
Model #: BEF-025-150-3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0250 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Reach Length (Decimal Inch) | 0.1500 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Additional Information | End Mills for Steels & High Temperature Alloys - Ball - 2 & 3 Flute - Long Reach, Stub Flute |
| Centercutting | Yes |
| Single Or Double End | Single |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0380 |
