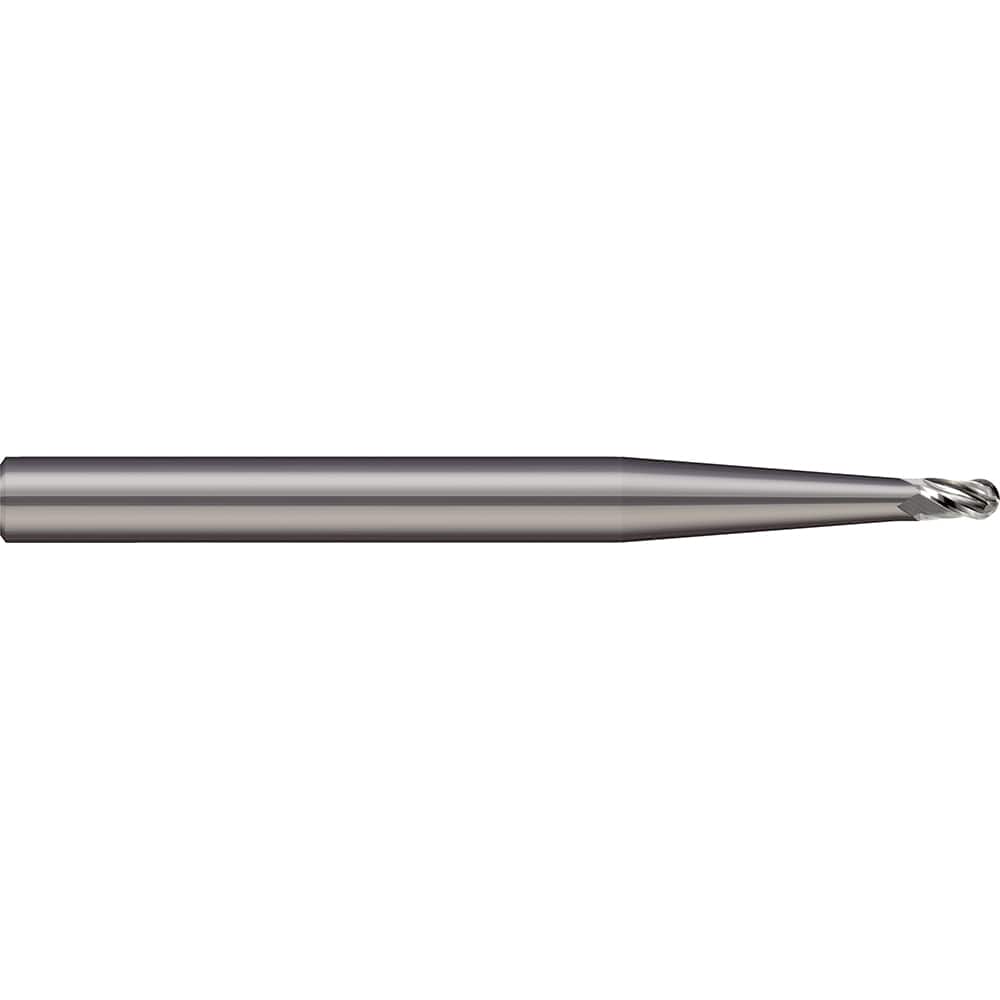

Micro 100 - Ball End Mills; Mill Diameter (Inch): 11/64 ; Mill Diameter (Decimal Inch): 0.1719 ; Number of Flutes: 2 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
Item #: 11132891
Brand: Micro 100
Model #: BEM-171-02
Product Specifications
Ball End Mills; Mill Diameter (Inch): 11/64 ; Mill Diameter (Decimal Inch): 0.1719 ; Number of Flutes: 2 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
| Mill Diameter (Inch) | 11/64 |
| Mill Diameter (Decimal Inch) | 0.1719 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Additional Information | End Mills - Ball - 2, 3, 4 Flute - Stub & Standard |
