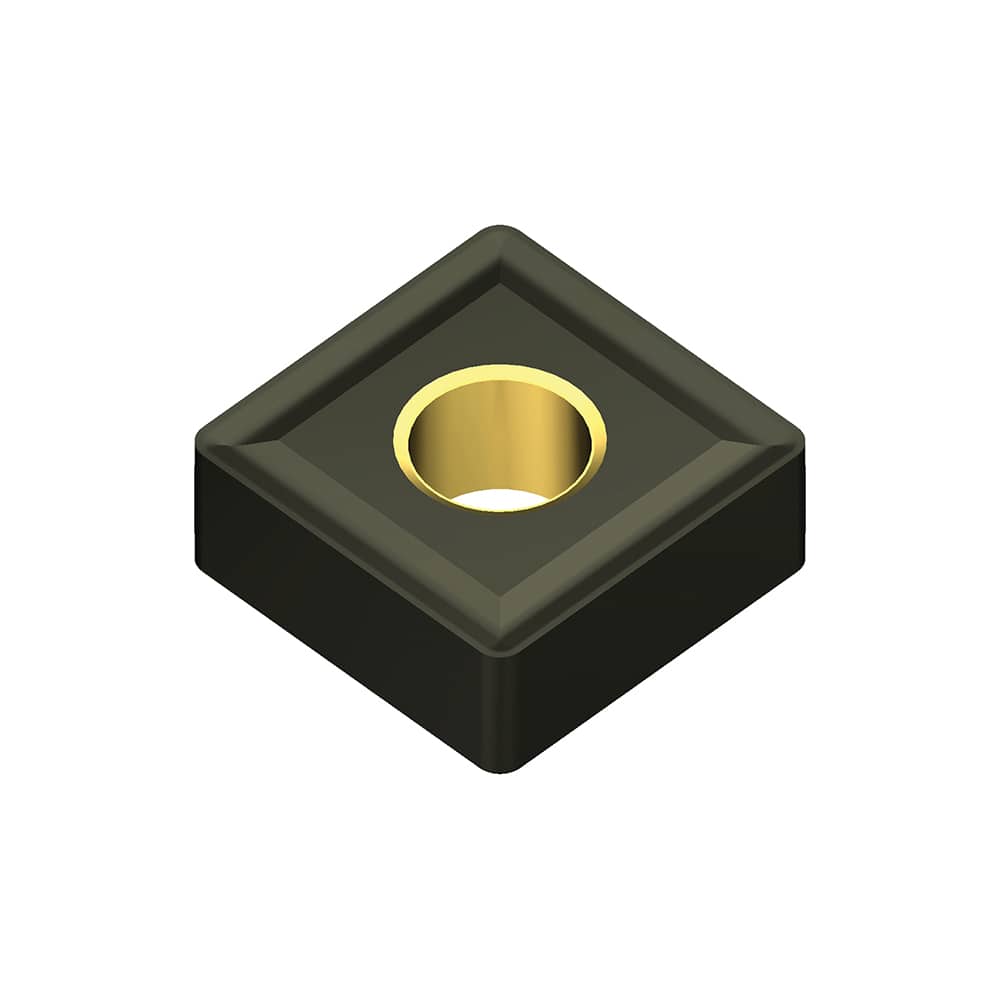

SNMG543EGZ-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 5/8″ Long, 5/8″ Inscribed Circle, 0.0472″ Corner Radius, 1/4″ Thick, 90° Included Angle, Series AC4000K
Item #: 11098241
Brand: Sumitomo
Model #: 19T2CHG
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 543 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | AC4000K |
| Coating Process | CVD |
| Insert Length (Inch) | 5/8 |
| Insert Length (Decimal Inch) | 0.6250 |
| Insert Length (mm) | 15.88 |
| Iso Code | SNMG150612N-GZ |
| Manufacturers Catalog Number | SNMG543EGZ-AC4015K |
| Chip Breaker | EGZ |
| Coating/Finish | TiCN; Al2O3 |
