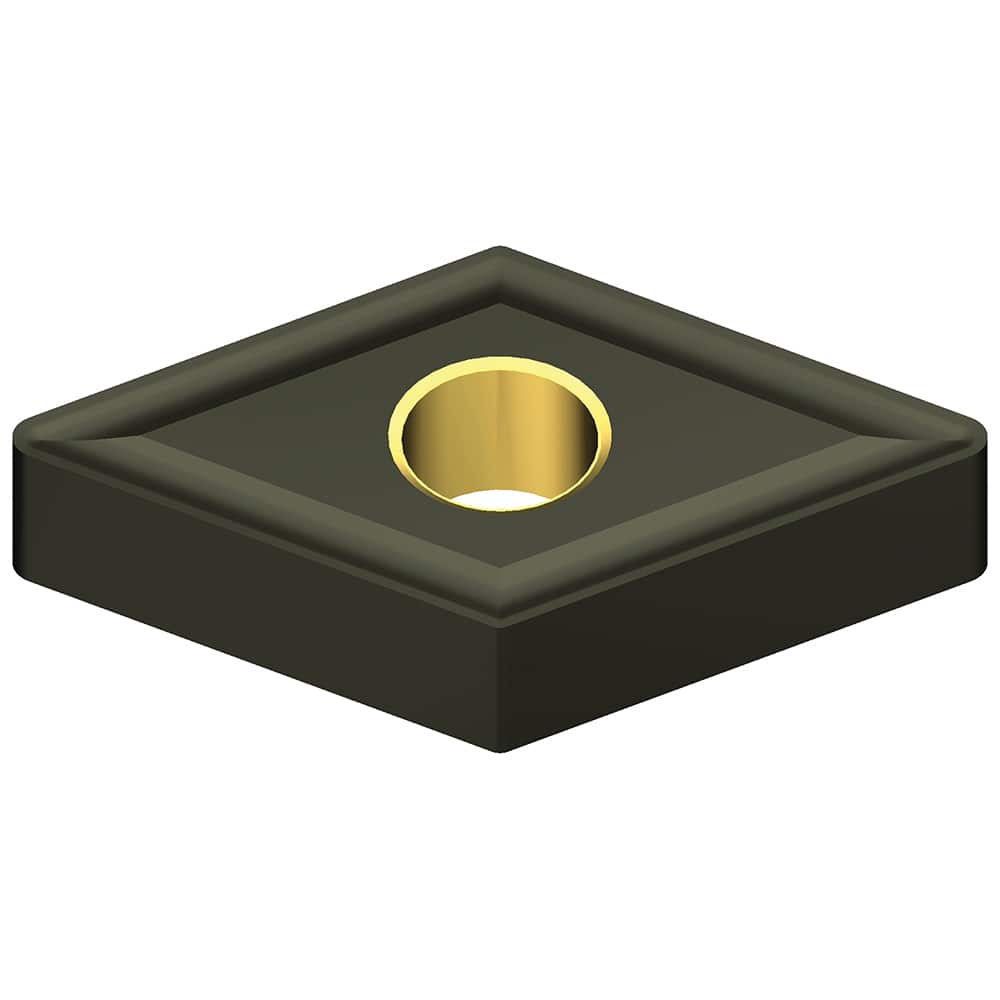

DNMG442EGZ-AC4010K Carbide Turning Insert Al2O3/TiCN Finish, 15.5mm Long, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 1/4″ Thick, 55° Included Angle, Series AC4000K
Item #: 11098159
Brand: Sumitomo
Model #: 19T1CAJ
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 442 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4010K |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6102 |
| Insert Length (mm) | 15.50 |
| Iso Code | DNMG150608N-GZ |
| Manufacturers Catalog Number | DNMG442EGZ-AC4010K |
| Chip Breaker | EGZ |
| Coating/Finish | TiCN; Al2O3 |
