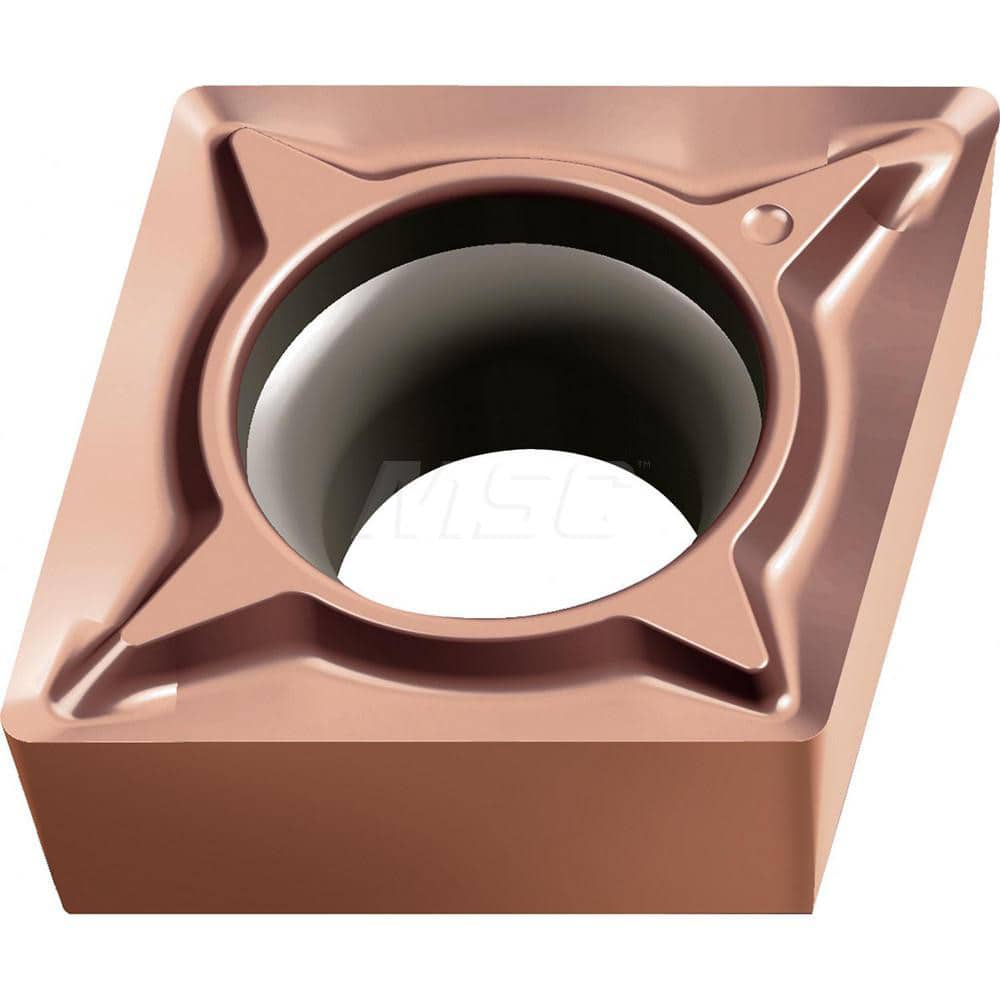

Turning Insert: CCGT3251M-FP2 WEP10C, Cermet, TiCN & TiAlN Finish, Neutral, 3/8″ Inscribed Circle, 80.0 ° N/A Rhombic,
Item #: 11055738
Brand: Walter
Model #: 7779958
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 09T304 |
| Insert Shape | Rhombic |
| Clearance Code | C |
| Tolerance Code | G |
| Manufacturer Grade | WEP10C |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Corner Radius (mm) | 0.37 |
| Included Angle | 80.0 |
| Insert Length (mm) | 9.67 |
| Manufacturers Catalog Number | CCGT09T304M-FP2 WEP10C |
| Cutting Direction | Neutral |
| Chip Breaker | FP2 |
| Coating/Finish | Cermet; TiCN; TiAlN |
