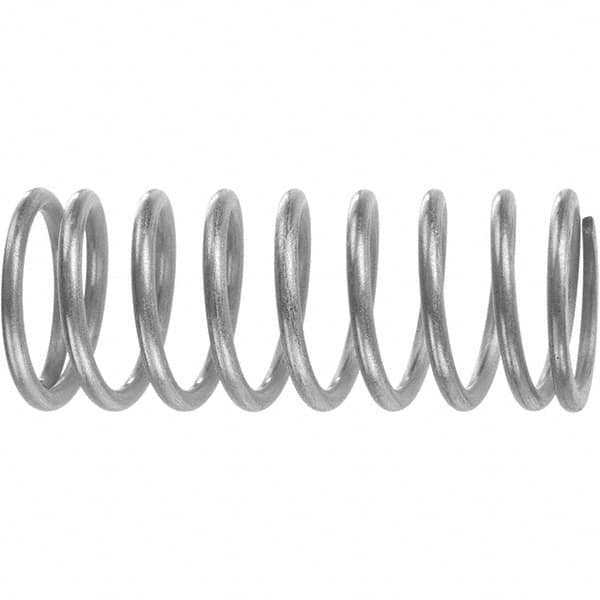

Compression Spring: 1.763″ OD, 5″ Free Length 0.162″ Wire Dia, 86.631 lb Max Load, 30.155 lb/in Spring Rate, Music Wire
Item #: 11038320
Brand: Associated Spring Raymond
Model #: C1763-162-5000M
Product Specifications
| Type | Compression |
| Outside Diameter (Decimal Inch) | 1.7630 |
| Free Length (Decimal Inch) | 5.0 in; 5.0 mm |
| Free Length (mm) | 5.0 in; 5.0 mm |
| Free Length | 5.0 in; 5.0 mm |
| Spring Rate Pounds per Inch | 30.1550 |
| Spring Rate Newtons | 30.1550 |
| Maximum Work Load (N) | 86.631 lb |
| Maximum Work Load | 86.631 lb; 86.6310 |
| Solid Height | 1.701 |
| Spring Rate | 30.1550 |
| Material | Music Wire |
| Maximum Load | 86.631 lb |
| Wire Size (Decimal Inch) | 0.1620 |
