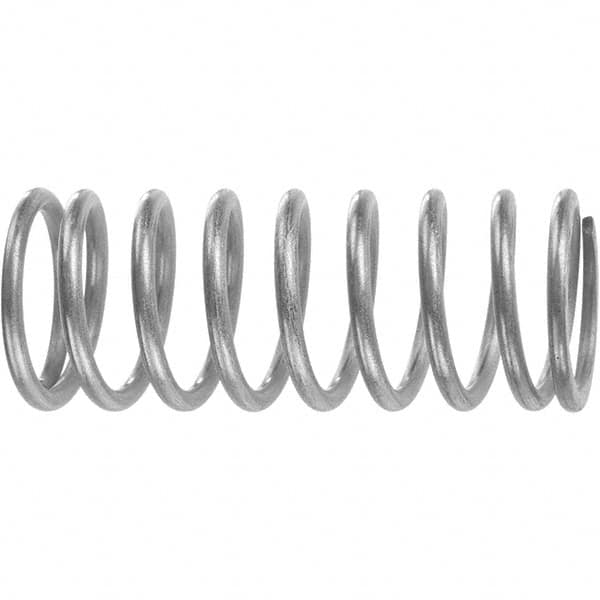

Compression Spring: 1.704″ OD, 3.5″ Free Length 0.177″ Wire Dia, 83.947 lb Max Load, 56.58 lb/in Spring Rate, Stainless Steel
Item #: 11035375
Brand: Associated Spring Raymond
Model #: C1704-177-3500S
Product Specifications
Type | Compression |
Outside Diameter (Decimal Inch) | 1.7040 |
Free Length (Decimal Inch) | 3.5 mm; 3.5 in |
Free Length (mm) | 3.5 mm; 3.5 in |
Free Length | 3.5 mm; 3.5 in |
Material | Stainless Steel |
Spring Rate Pounds per Inch | 56.5800 |
Spring Rate Newtons | 56.5800 |
Maximum Work Load (N) | 83.947 lb |
Maximum Work Load | 83.9470; 83.947 lb |
Solid Height | 1.504 |
Spring Rate | 56.5800 |
Maximum Load | 83.947 lb |
Wire Size (Decimal Inch) | 0.1770 |
