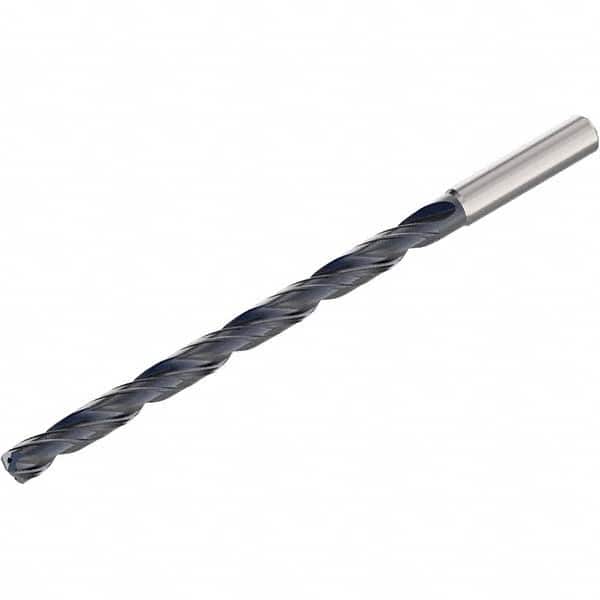

Extra Length Drill Bit: 0.2363″ Dia, 140 °, Solid Carbide TiAlN Finish, Spiral Flute, Straight-Cylindrical Shank, Series SD1112A
Item #: 10934768
Brand: Seco
Model #: 03295116
Product Specifications
| Drill Bit Size (mm) | 6.00 |
| Overall Length (mm) | 121.00 |
| Flute Length (mm) | 83.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | SD1112A |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Standards | DIN 6537A |
| Drill Bit Size (Decimal Inch) | 0.2363 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 74.00 |
