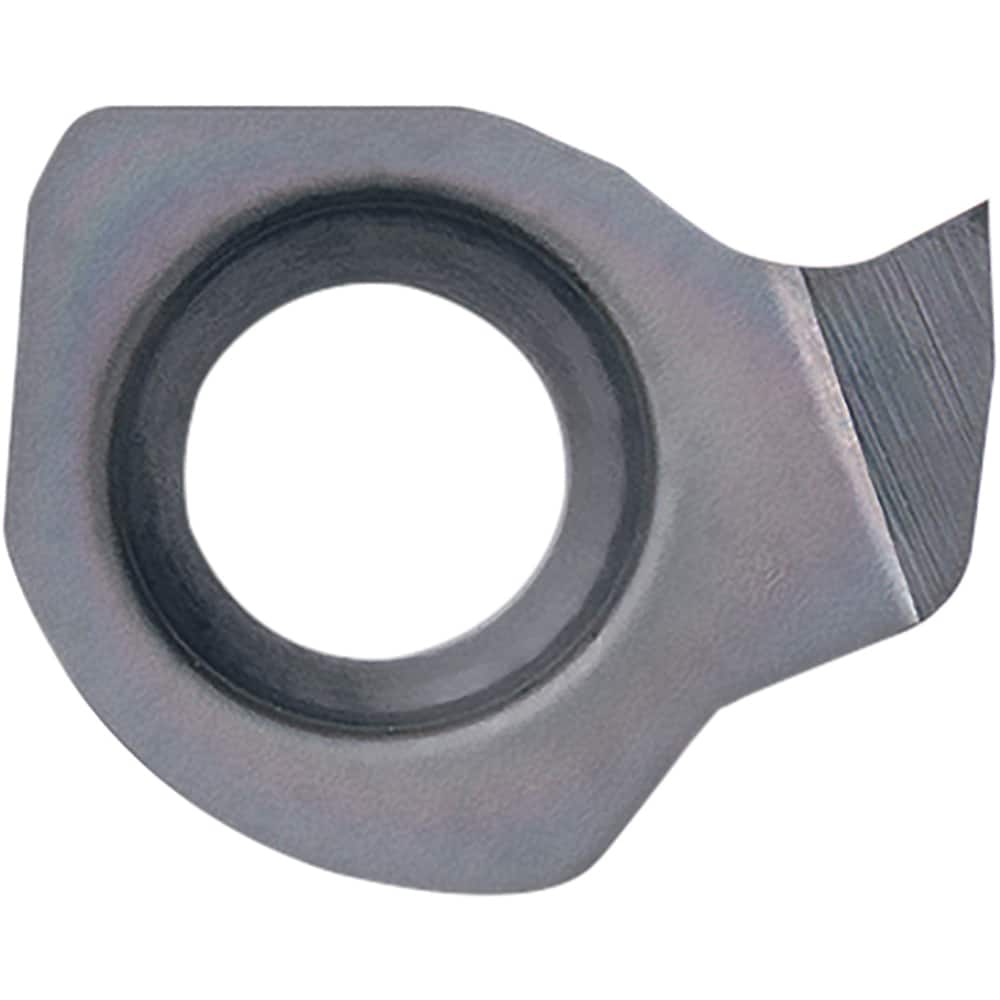

Kyocera - GC12R150-010 PR1725 Carbide Grooving Insert
Item #: 10917268
Brand: Kyocera
Model #: 8863897
Product Specifications
| Insert Style | GC |
| Insert Size | 12 |
| Material | Carbide |
| Cutting Width (mm) | 1.500 |
| Maximum Depth of Cut (mm) | 2.20 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.40 |
| Number of Cutting Edges | 1 |
| Multi-Use Application | Internal Grooving; Machining |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.10 |
| Coating Process | PVD |
| Series | SIGC |
| Rake | Positive |
| ISO Number | GC12R150-010 |
| Manufacturers Catalog Number | GC12R150010PR1725 |
| Insert Thickness (mm) | 5.40 |
| Series Number | SIGC |
| Minimum Insert Width (mm) | 4.70 |
| Insert Holding Method | Screw or Clamp |
| Hole Diameter (mm) | 3.5000 |
| Hole Diameter (Decimal Inch) | 0.1378 |
