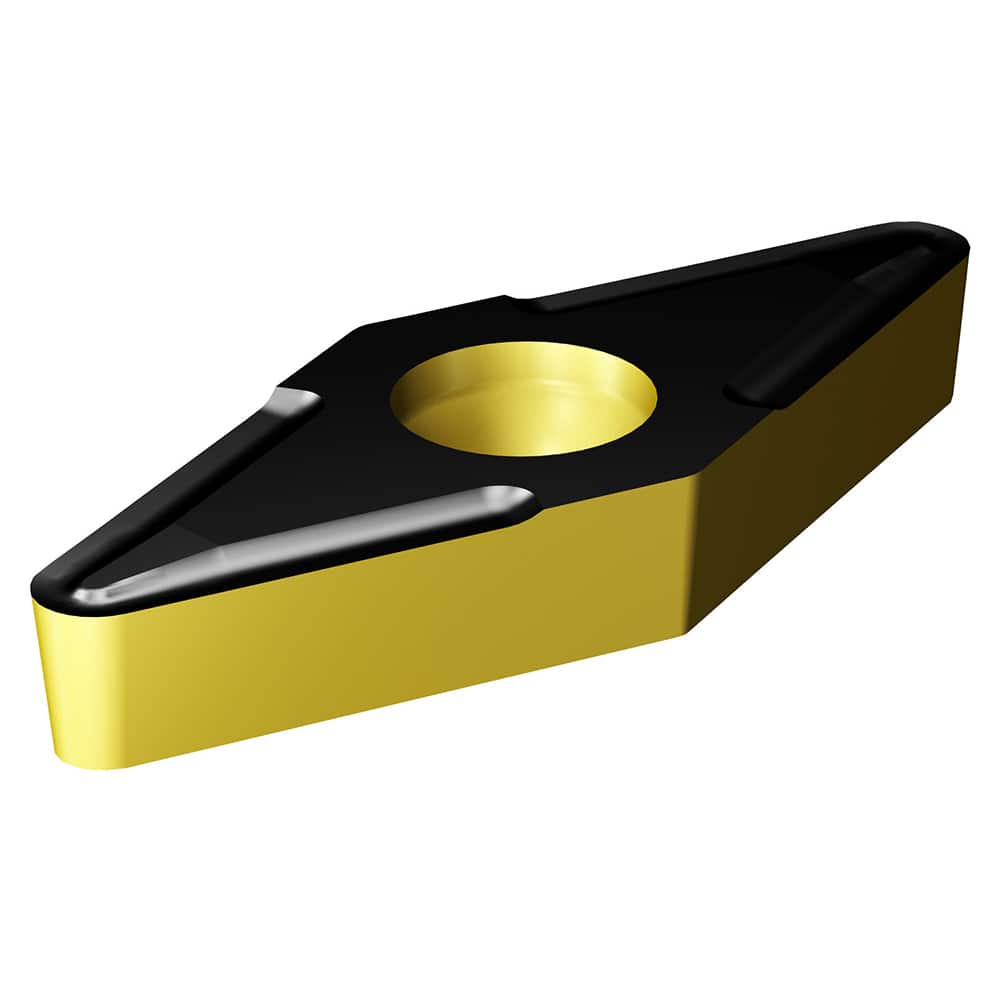

Turning Insert: VBMT 11 02 08-UF 4415, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Diamond 35 ™, Series VBMT-UF
Item #: 10800027
Brand: Sandvik Coromant
Model #: 8020981
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 21.52 |
| Insert Shape | Diamond 35? |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Series | VBMT-UF |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | VBMT 11 02 08-UF 4415 |
| Manufacturers Catalog Number | VBMT 11 02 08-UF 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Style | VBMT |
| Coating/Finish | TiCN; TiN; Al2O3 |
