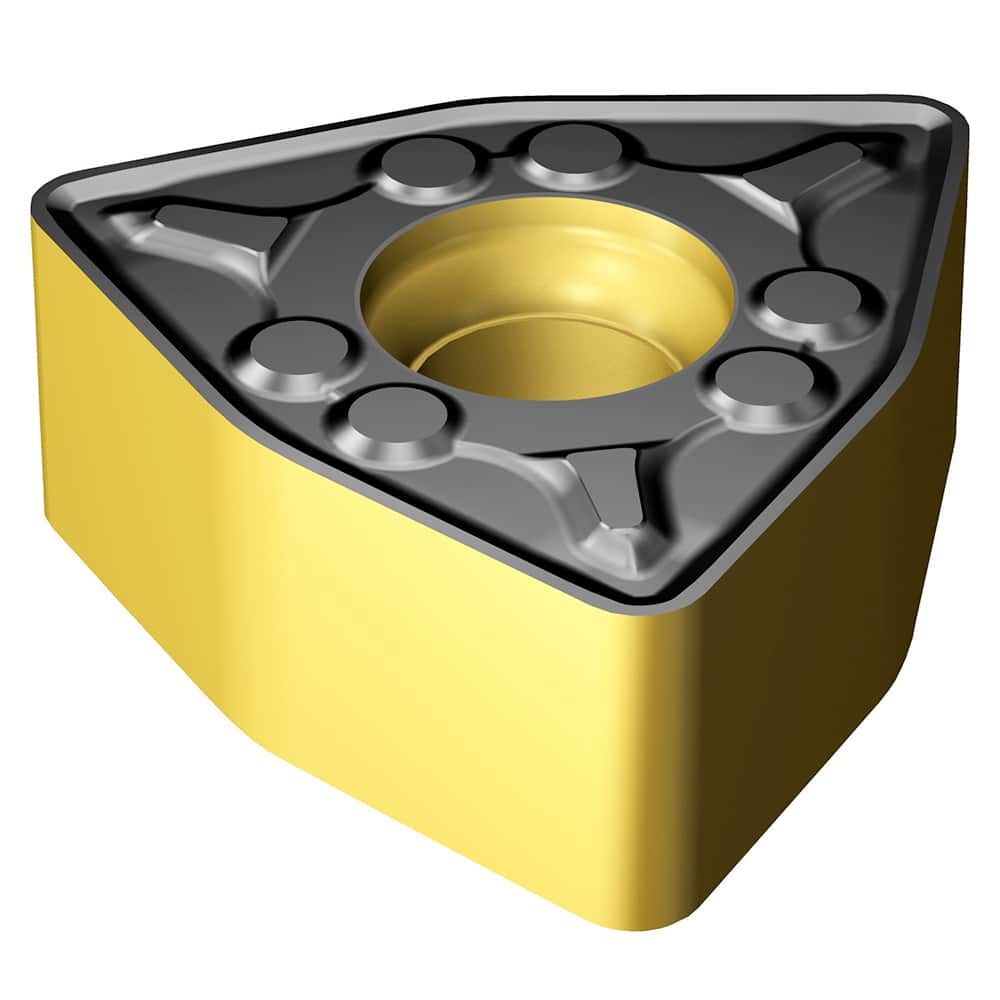

Turning Insert: WNMU 08 04 12-WM 4425, TiCN, Al2O3 & TiN Finish, Neutral, 0.0469″ Corner Radius, N/A Series WNMU-WM
Item #: 10798148
Brand: Sandvik Coromant
Model #: 8019703
Product Specifications
| Insert Style | WNMU |
| Insert Shape Code | W |
| Insert Size Code | 433 |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Relief Angle | 0 |
| Series | WNMU-WM |
| Coating Process | CVD |
| Iso Code | WNMU 08 04 12-WM 4425 |
| Manufacturers Catalog Number | WNMU 08 04 12-WM 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
